Pelmar Engineering Group

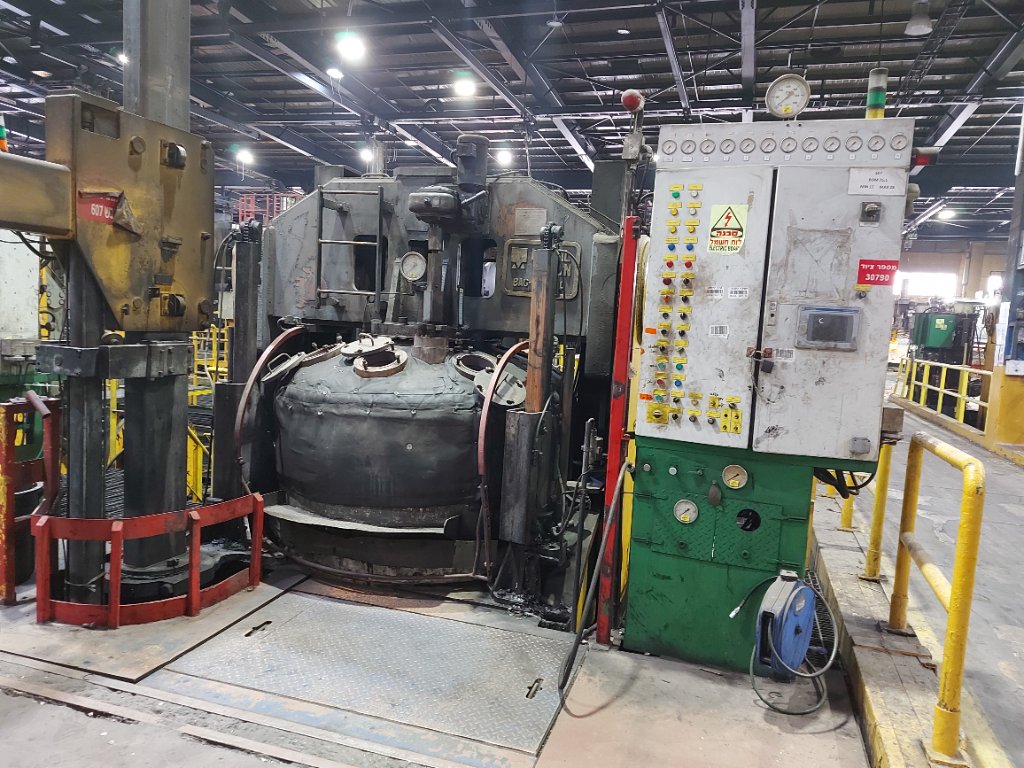

Tire Curing Press BOM 75" 15-28"

McNeil & NRM

Manufactured by: McNeil Model: 1300-75" M7 BOM Year of Manufacture: 1976, Regular upkeep still installed

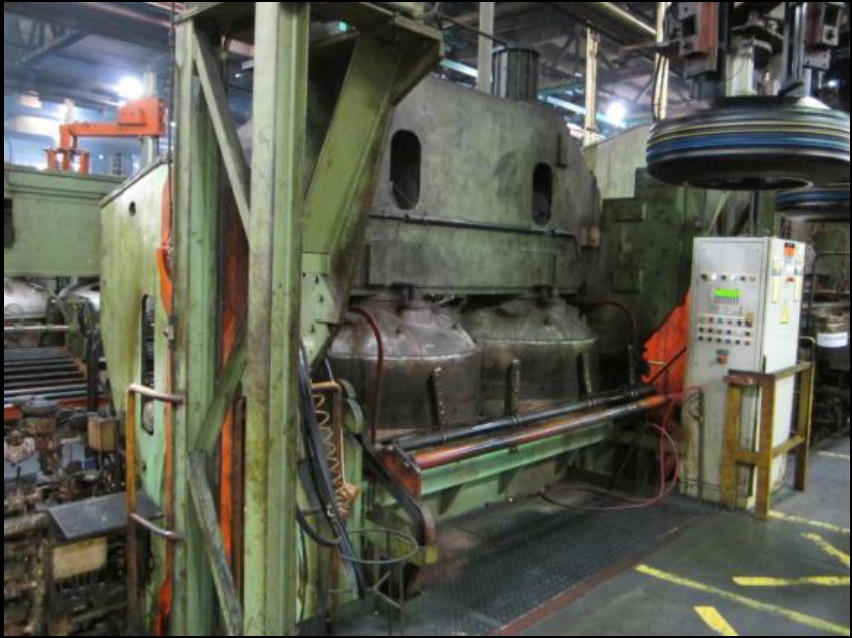

Tire Curing Press BOM 55'' (Two Units)

Skoda

55 inch blow-out mold tire curing press manufactured by Škoda Plzeň Twin cavities with segmented mold for passenger and light truck tires

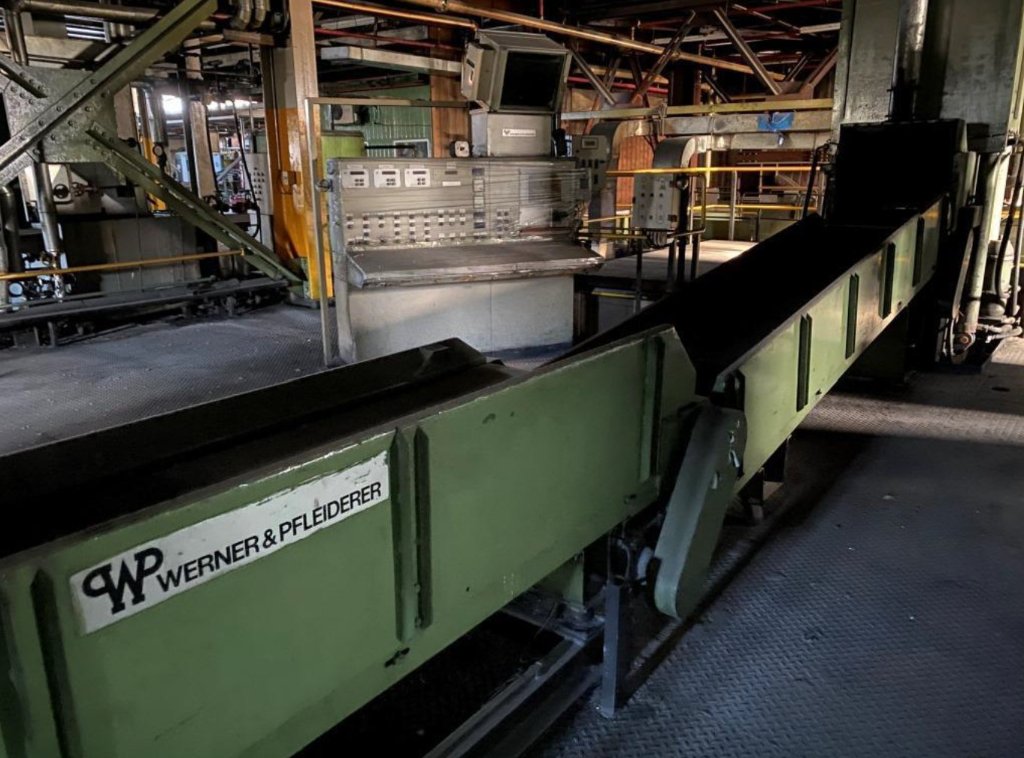

GK-270N Internal Mixer

W&P

GK-270N internal mixer, serial 1374 Volume 250l/188l Tangential rotors ZZ-2 Hydraulic hopper 40 bar DC motors ABB, 2x 600kW with DV Drive inverters SAWA gearbox 1200kW Refurbished 2012 with new chamber, ram, rotors

GK-110E Internal Mixer

Werner Pfleiderer

GK-110E internal mixer, machine nr F-1456 Total/useable volume 107l/70l Intermeshing rotors, hydraulically operated hopper Ansaldo motor 630kW, 460V, 1470A Sauerwald gearbox with motor-GB couplings available Mixer couplings available only on mixer side Partly available electric and controls

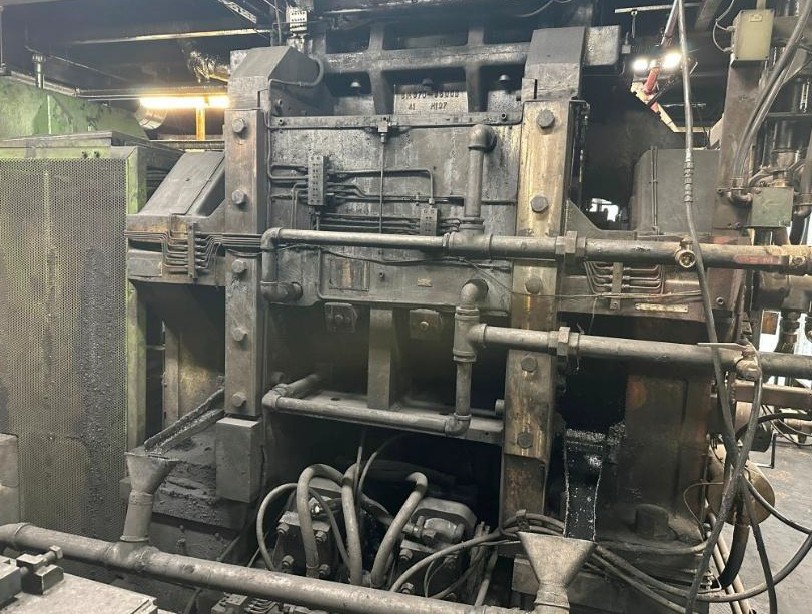

Internal Mixer PN370

Pomini Farrel

PN-370 internal mixer for master and final batching manufactured by Pomini/Farrel Complete with all scales and spare ram available

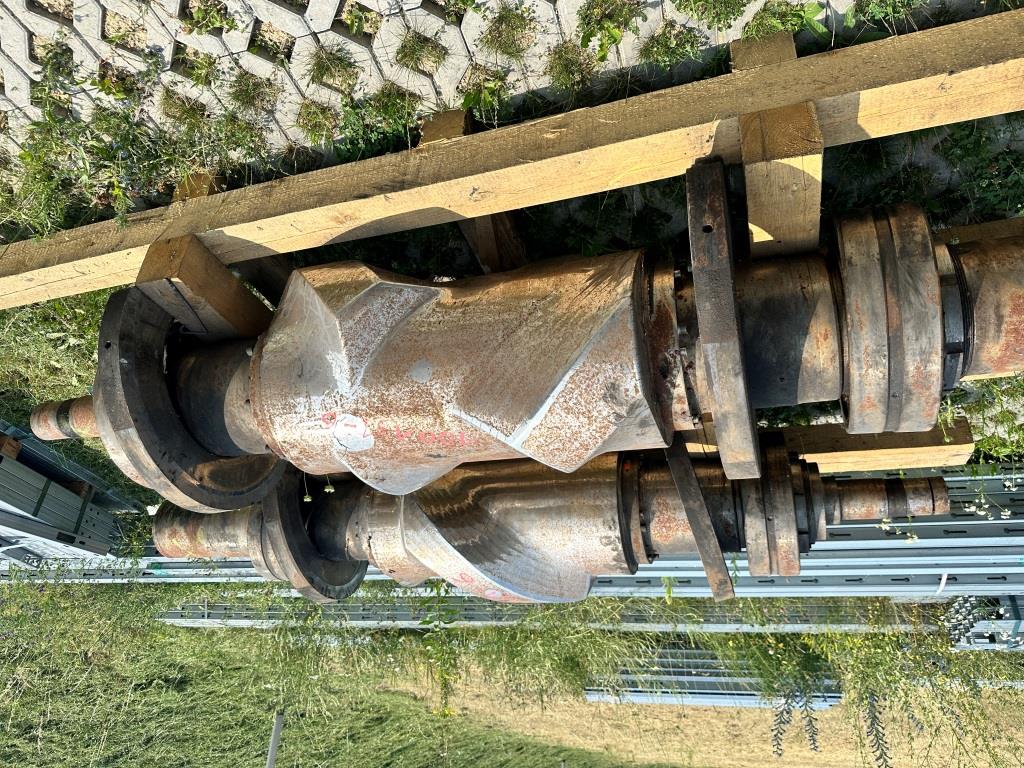

GK-190E Spare Rotor

HF

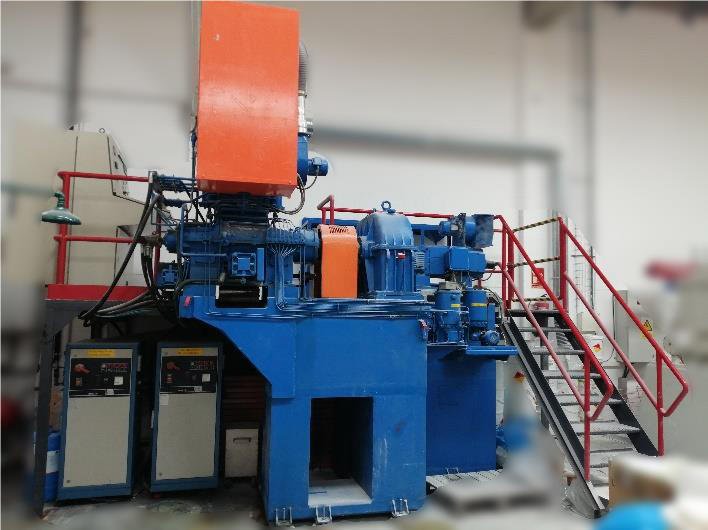

Internal Mixer - Guix 10L

Gumix

Rubber Mixer - K7

Francis Shaw

K7 Intermeshing

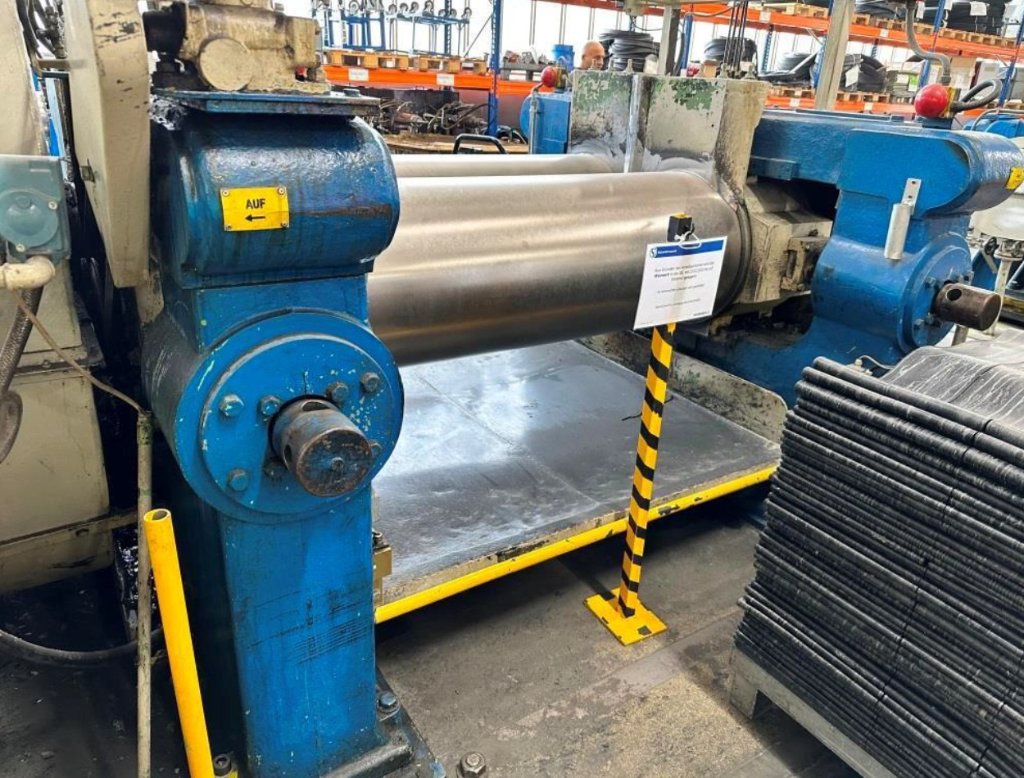

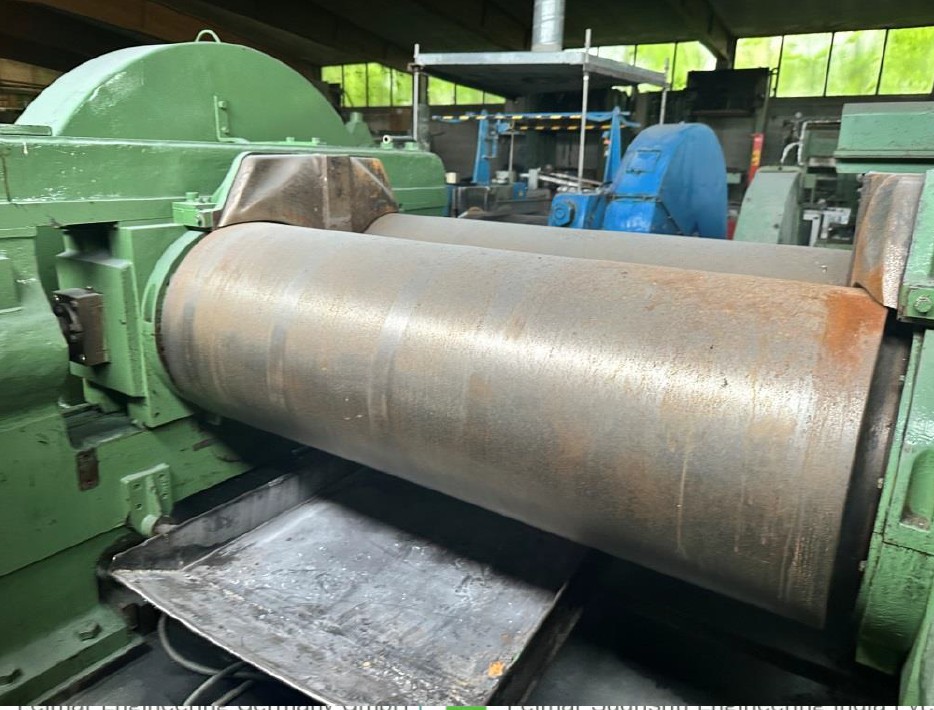

60" Mill

Semperit

60"

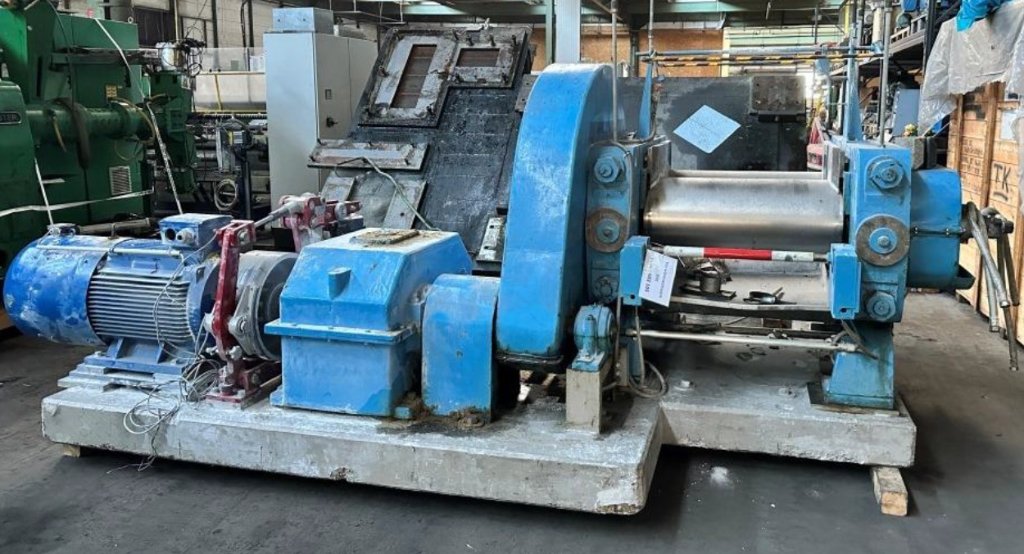

35" Mill

Berstorff

35"

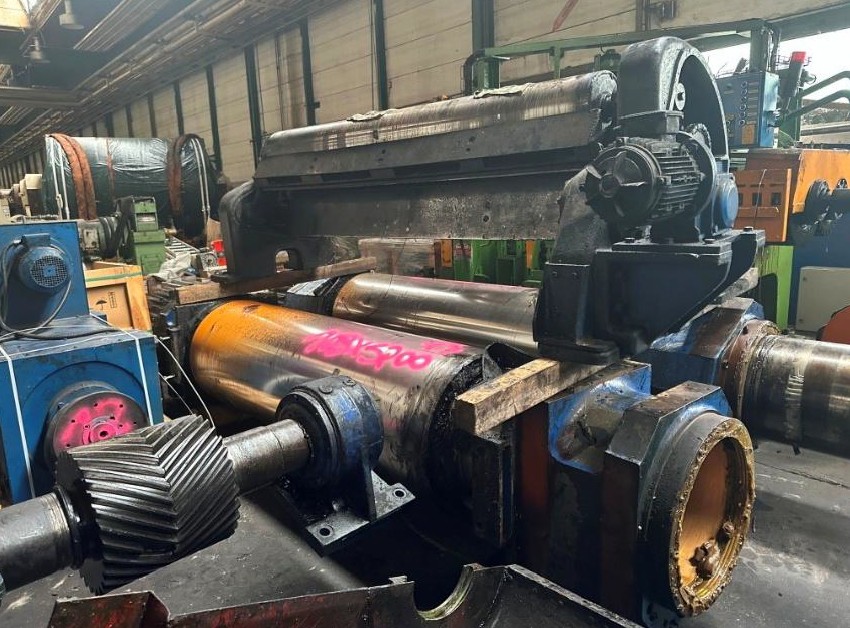

84" Mill

Repiquet

84"

60" Mill

Berstorff

60"

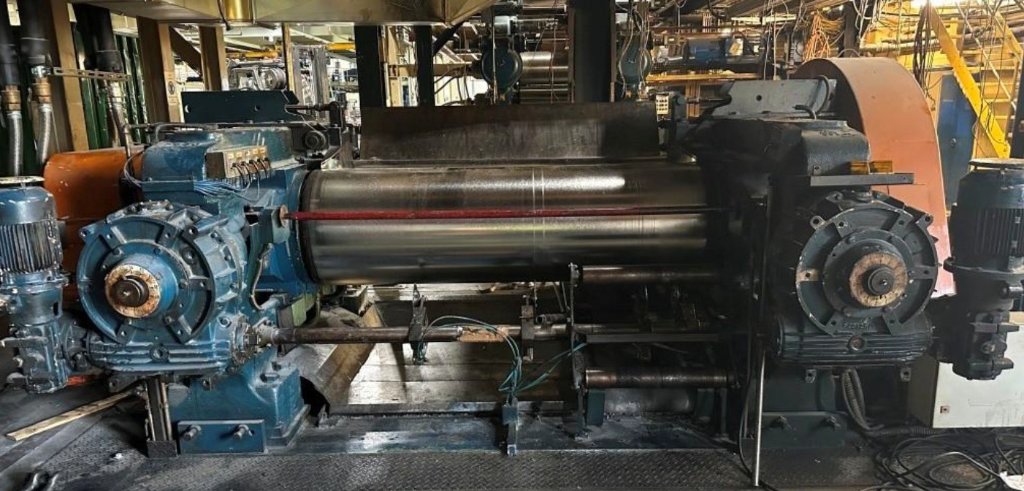

84" Mill

Carter

84"

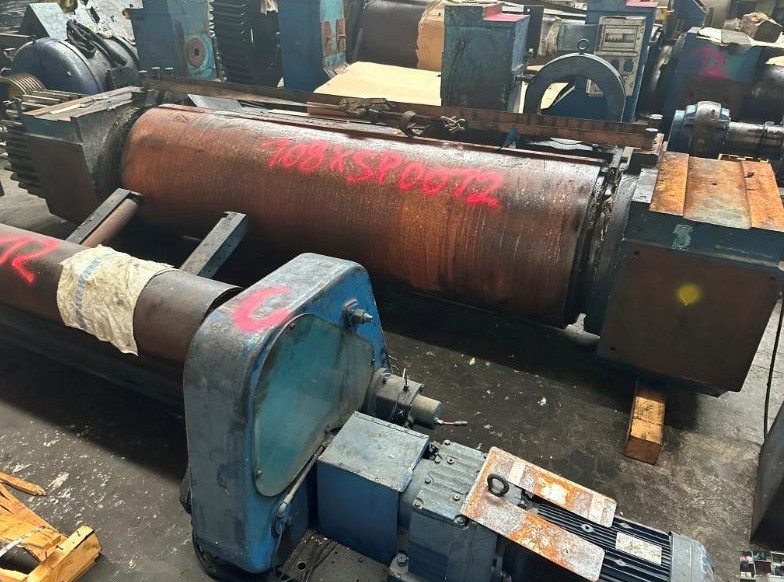

84" Mill

Berstorff

84"

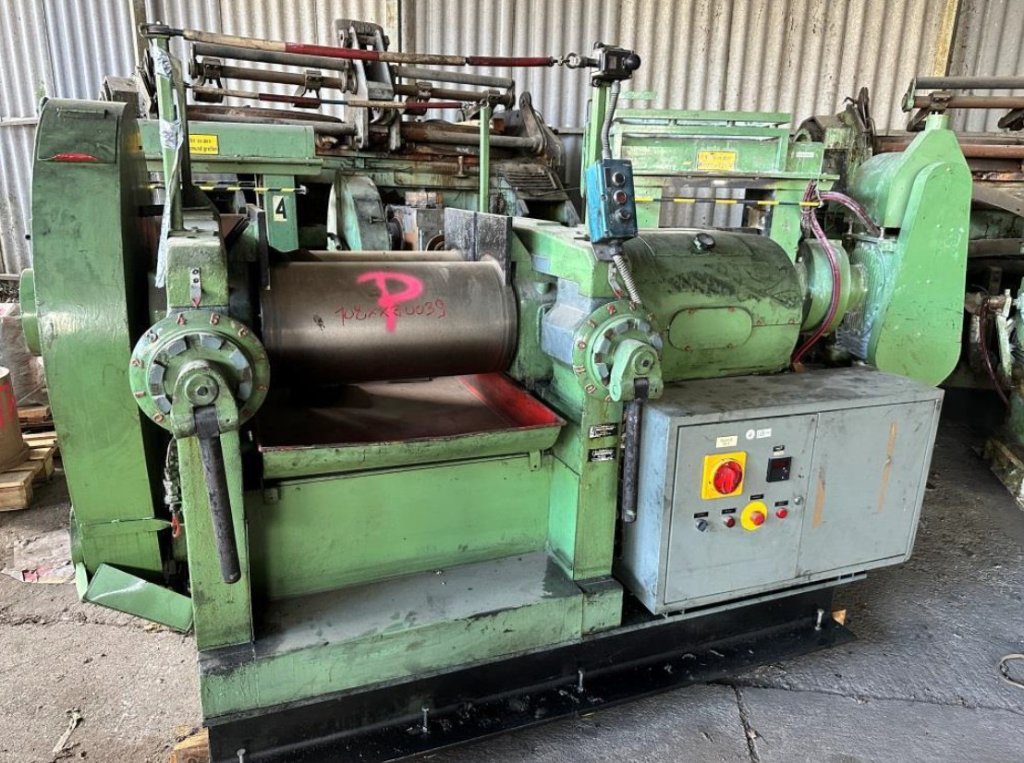

27" Mill

Machine Gomma

27"

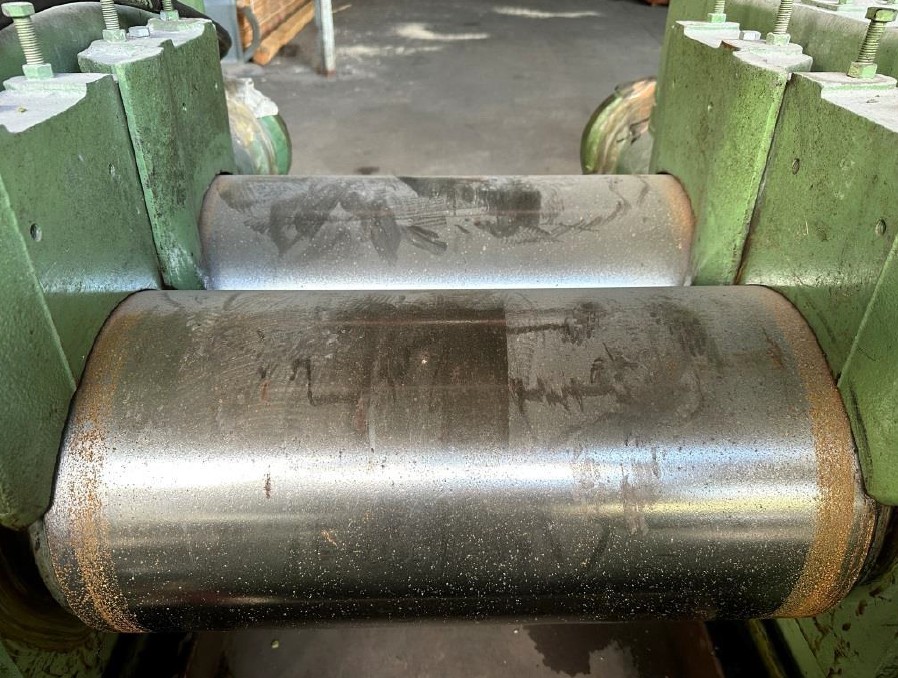

22" Mill

Trusioma

22"

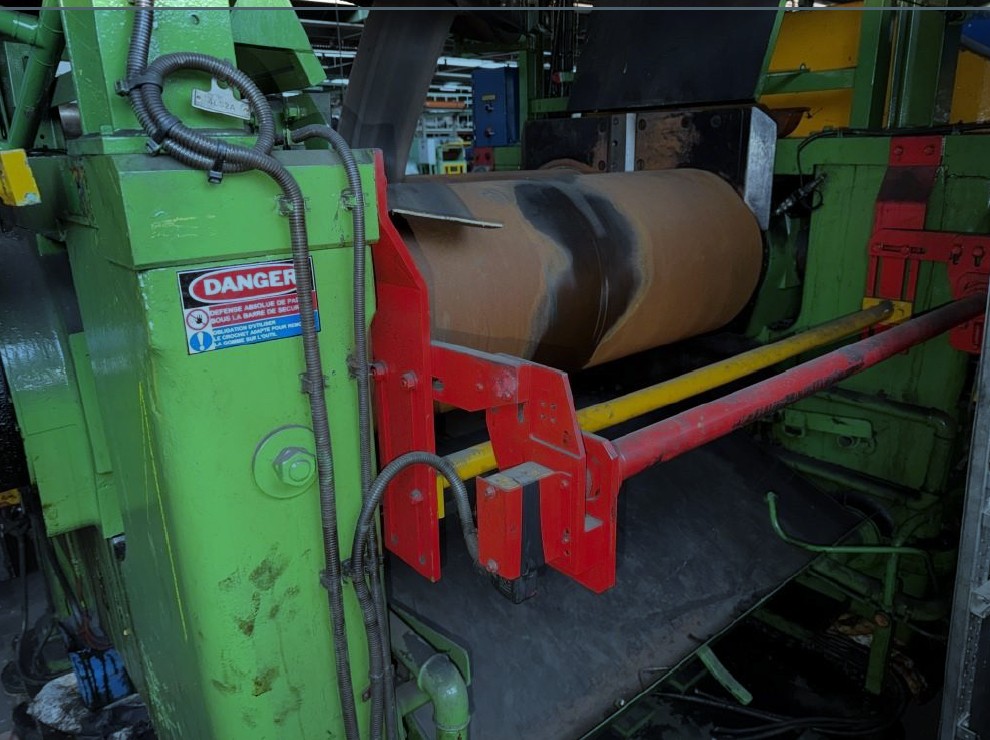

51" Mill

Repiquet

Twin 84" Feeding Mill

Berstorff

Twin 84" Feeding Mill by Berstorff, manufactured in 1971 and modernized in 2010. Roll dimension Ø 660 mm x 2133 mm length. Left side mill with fully corrugated back roll and smooth front roll. Right side mill with smooth cored back roll and smooth drilled front roll. Equipped with hydraulic nip adjustment (CE), Reliance Electric 400HP DC motor, and Jannel G72 gearbox.

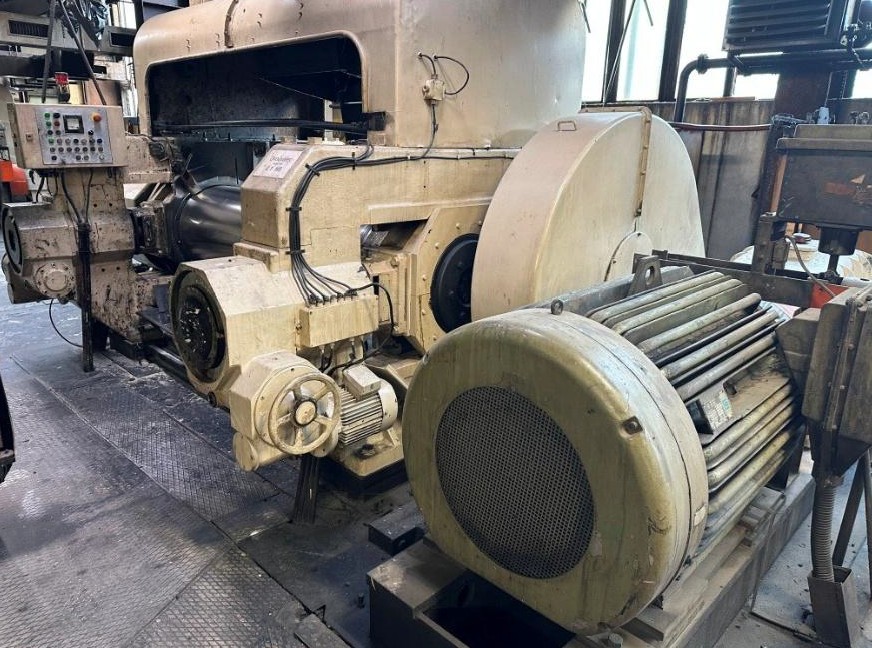

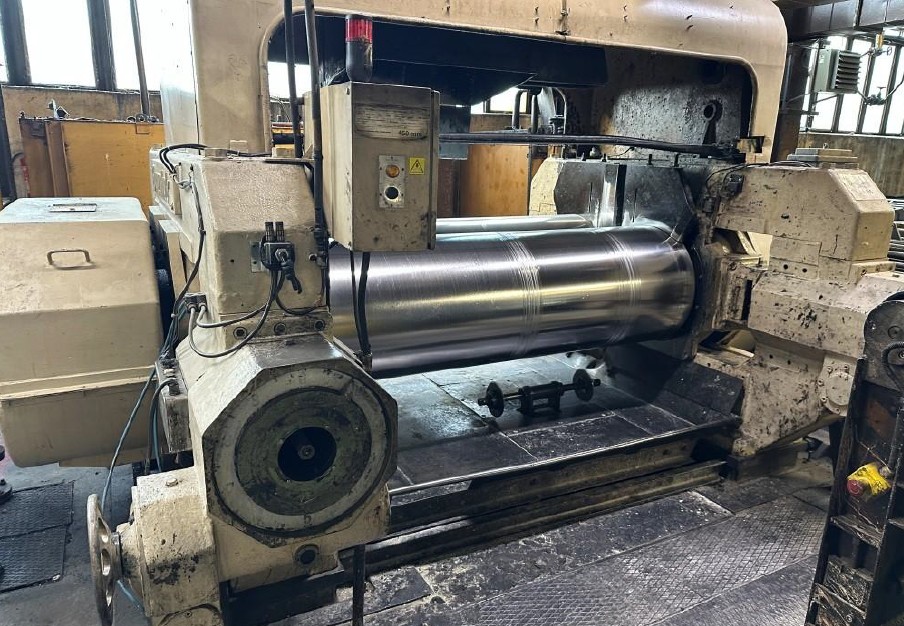

84'' Mill

Buzuluk

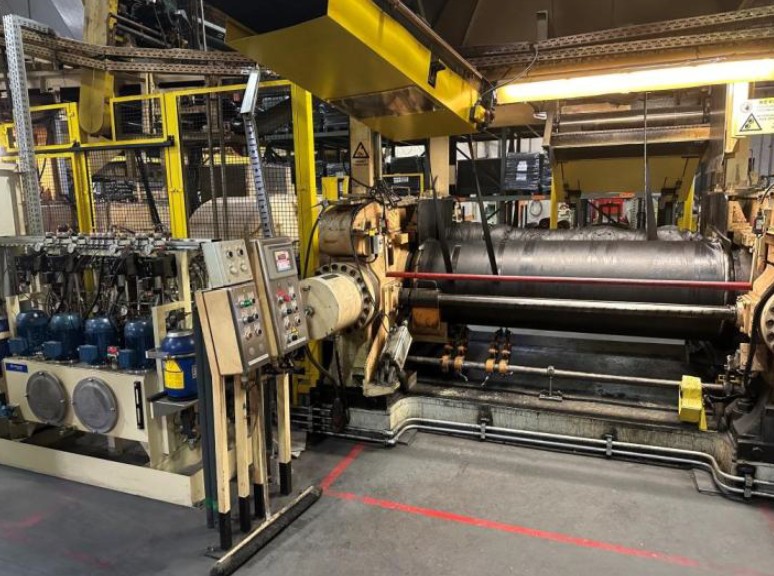

84" Twin Mill

Berstorff

Twin 84" feeding mill, 660mm x 2133mm rolls Left mill: fully corrugated cored back roll, smooth cored front Right mill: smooth cored back, smooth drilled front Hydraulic nip adjustment Reliance Electric DC motor 400HP, 650/1400 rpm Mounted on common baseframe with cutting device

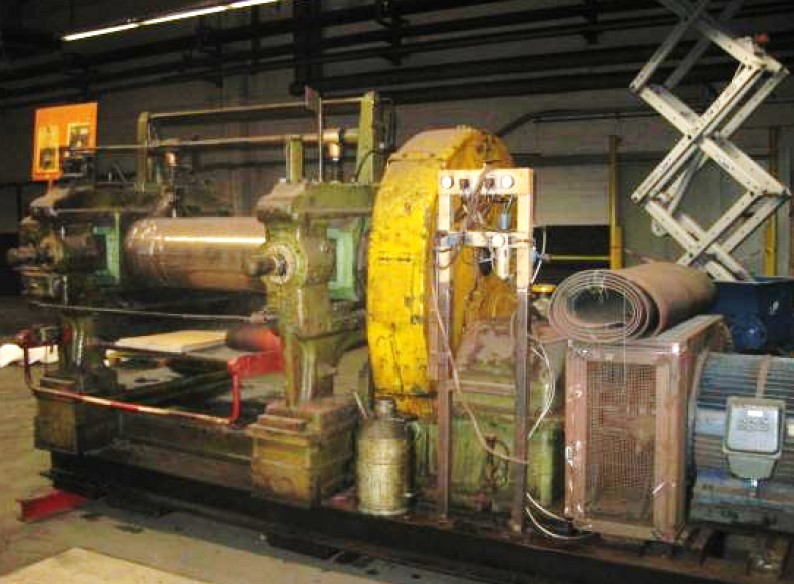

42" Mill

Unknown

42" mill with roll dimensions 1240x390mm, smooth roll surface, helical bull gear/pinion Motor: Brown Bovery QU 280S4, 380V, 142A, 75kW, 1475 rpm Jahnel gear box D720, 56 KW, 17/23 teeth ratio Includes base plate and safety bar

84'' Mill

Buzuluk

Mixing Mill - NEW

RPM

all sizes

120mm cold feed extruder

Troester

CFE / Vacuum

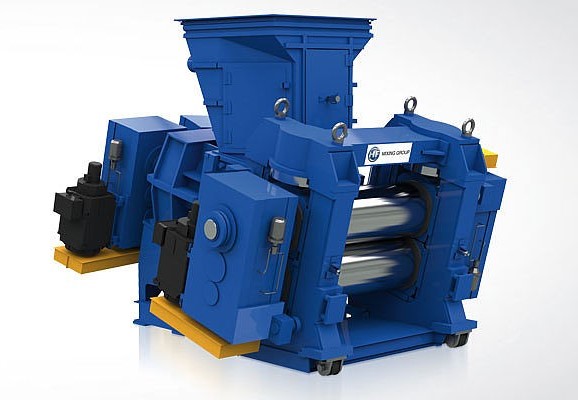

Twin Screw Discharge Extruder with Roller Head

HF

Twin-screw dump extruder with Roller Head (Convex 21 RH 24x56FH) manufactured by Harburg Freudenberger Maschinenbau GmbH. Unused, in original seaworthy packaging. Used to discharge and convey rubber compounds and permit automated rubber sheet production. Two conical screws pull in the material and convey it to the discharge flange, feeding a 610 x 1434 mm Roller Head calender capable of forming sheets up to 1200 mm wide.

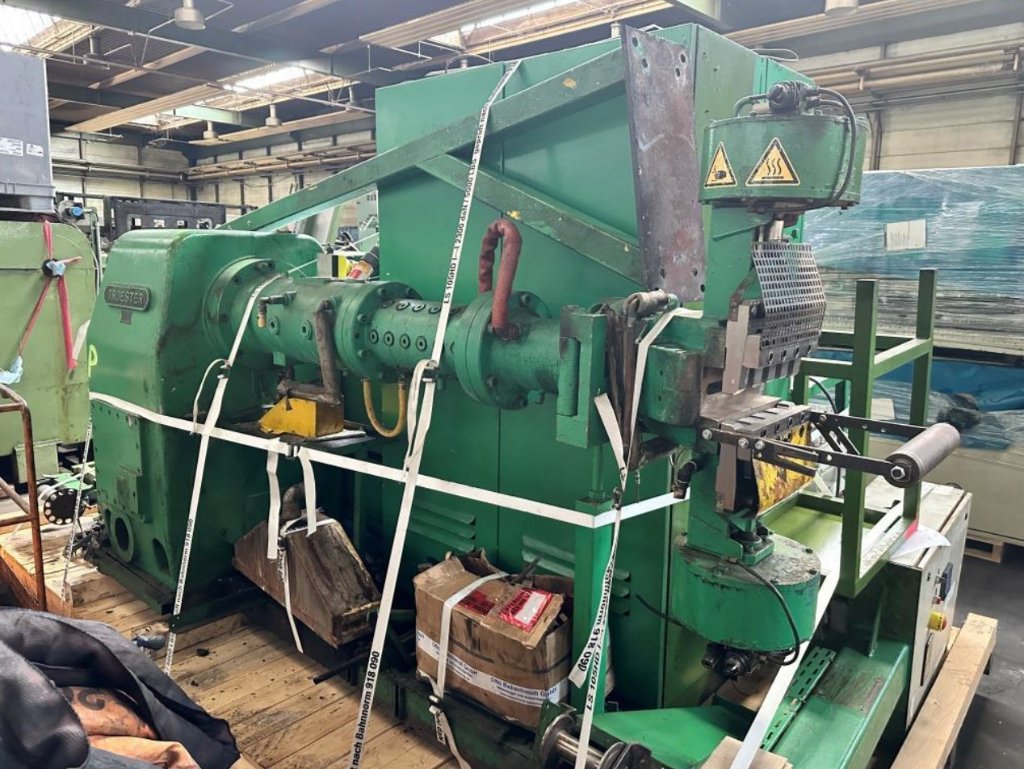

90mm Cold Feed Extruder

Troester

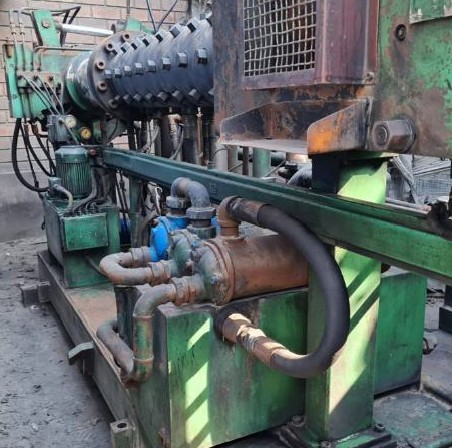

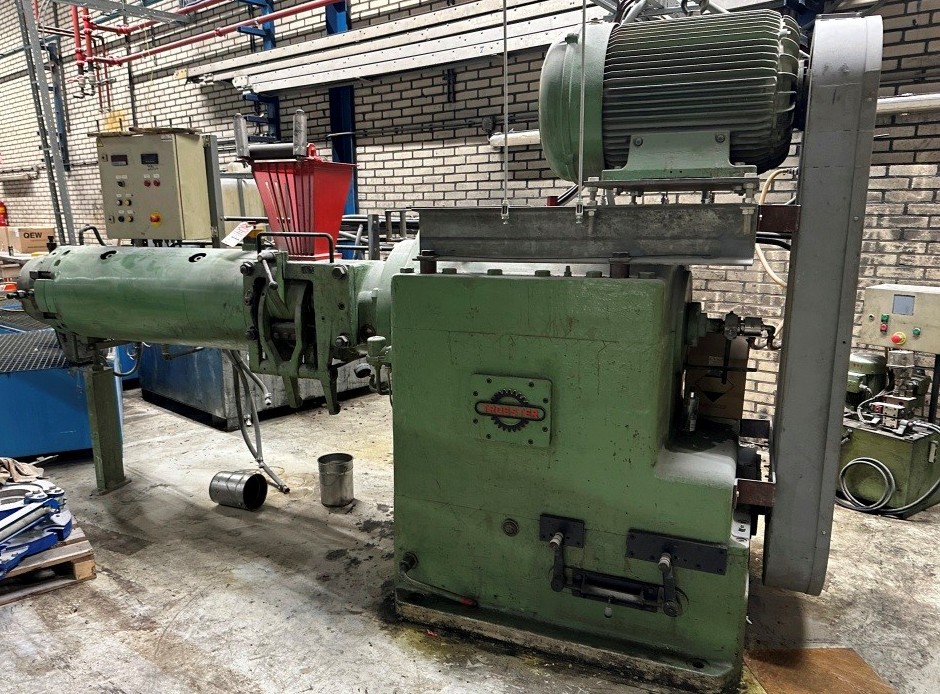

150mm Cold Feed Extruder

Troester

It is equipped with a plain vacuum barrel and a 150mm screw with a 16D L/D ratio. The system includes a feeding roll and a head configured for dies, with an additional second head available. Power is provided by a 75kW Siemens motor, and the electrical configuration features an E-panel with an ABB inverter. Documentation for the unit is partially available.

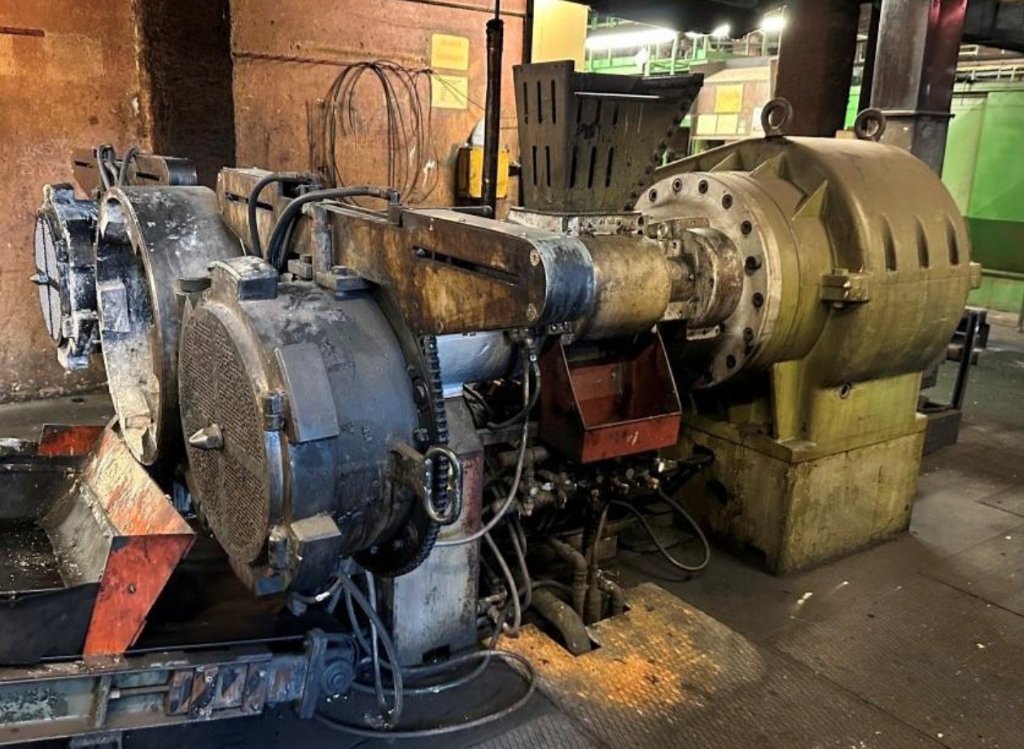

250mm Hot Feed Strainer

Chodos

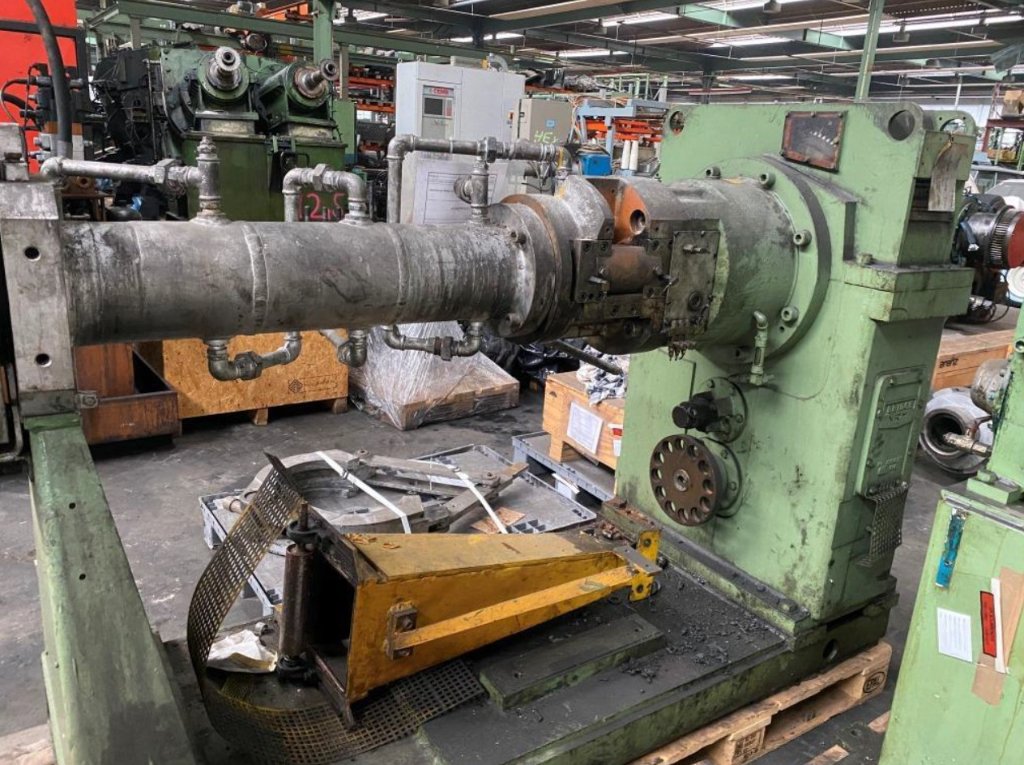

90mm Cold Feed Extruder

Troester

90mm Cold Feed Extruder

Bridge

CFE

150mm Cold Feed Extruder

Guix

C.F.E Single

90mm Cold Feed Extruder

Iddon

CFE / Vacuum

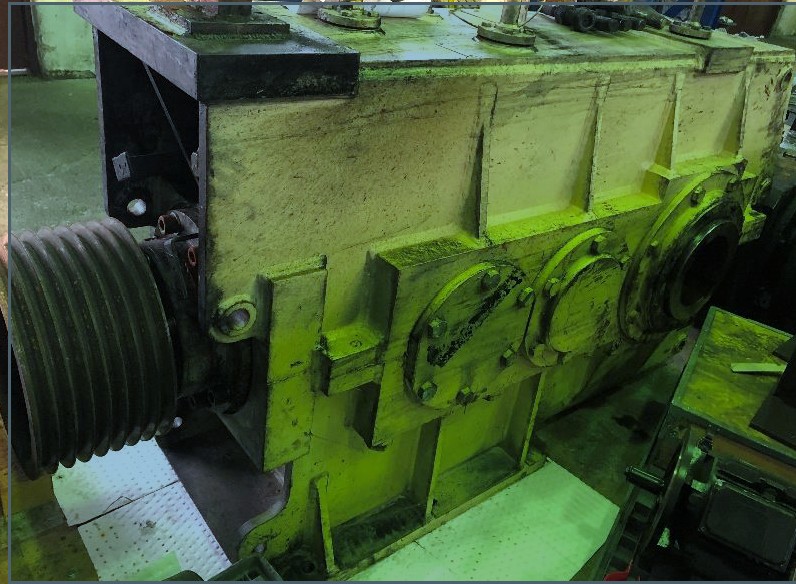

Twin Screw Roller Die - 500 x 1150mm

Farrel

TWIN SCREW ROLLER DIE

Triplex Extruder

Troester

Cold/Hot/Cold Feed Triplex

Twin-Screw Discharge Extruder Convex 21 - New

HF

Modern twin-screw discharge extruder with advanced mixing and conveying capabilities

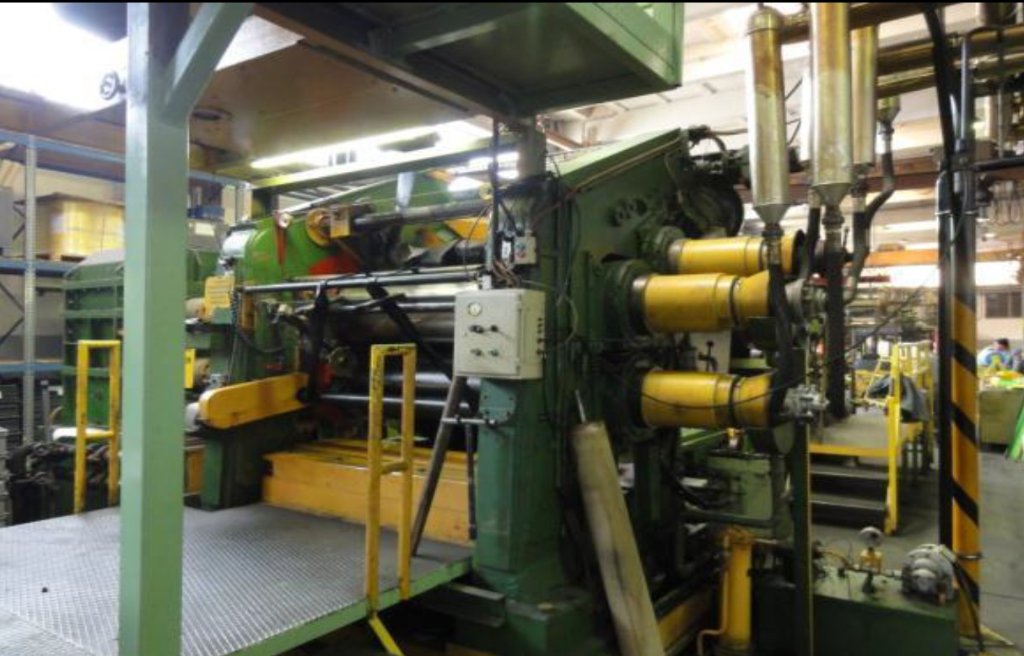

Calender 3 Roll - 610 X 1727 mm

Comerio Ercole

3 Rolls

Calender 4 Roll - 250 x 500mm

Troester

4 Rolls

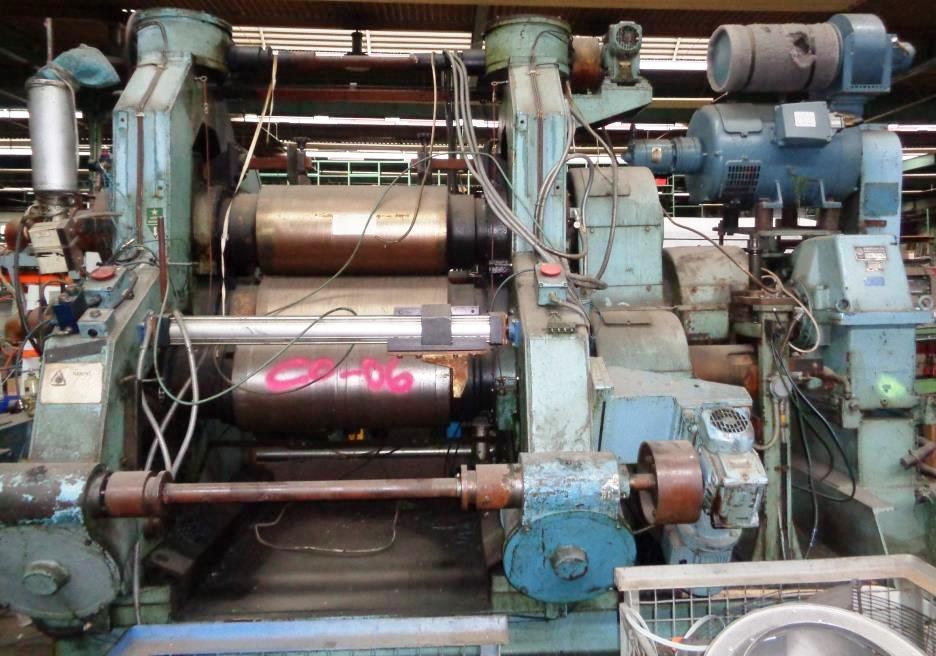

Calender 4 Roll - 400 X 760mm

Iddon

4 Rolls

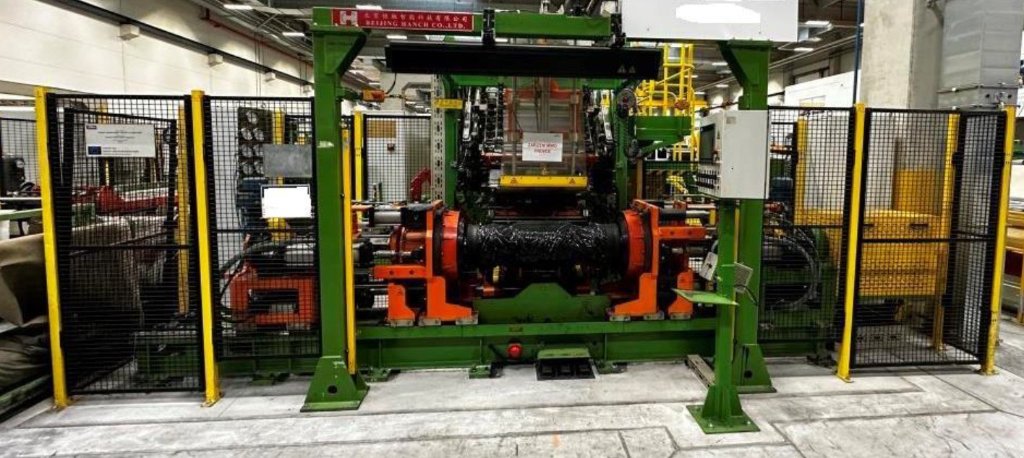

1st Stage Tire Building Machine IFRT-0815

Hanch

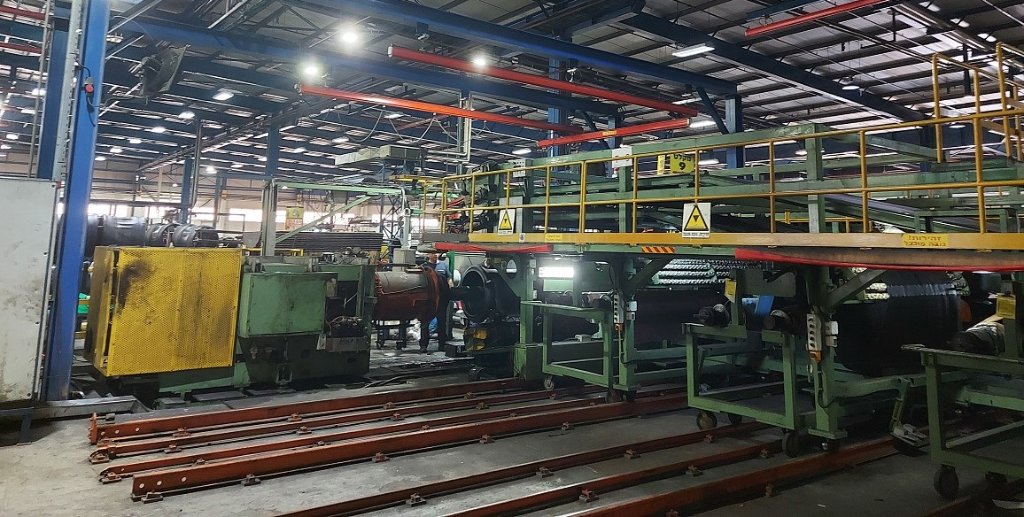

LCY2027 AGR 1st Stage TBM

FUJIAN

FUJIAN Lung Cheung Technology 1st stage tire building machine for agricultural tires with 5+1 ply servicers and laser marking device. Features Allen Bradley ControlLogix PLC control.

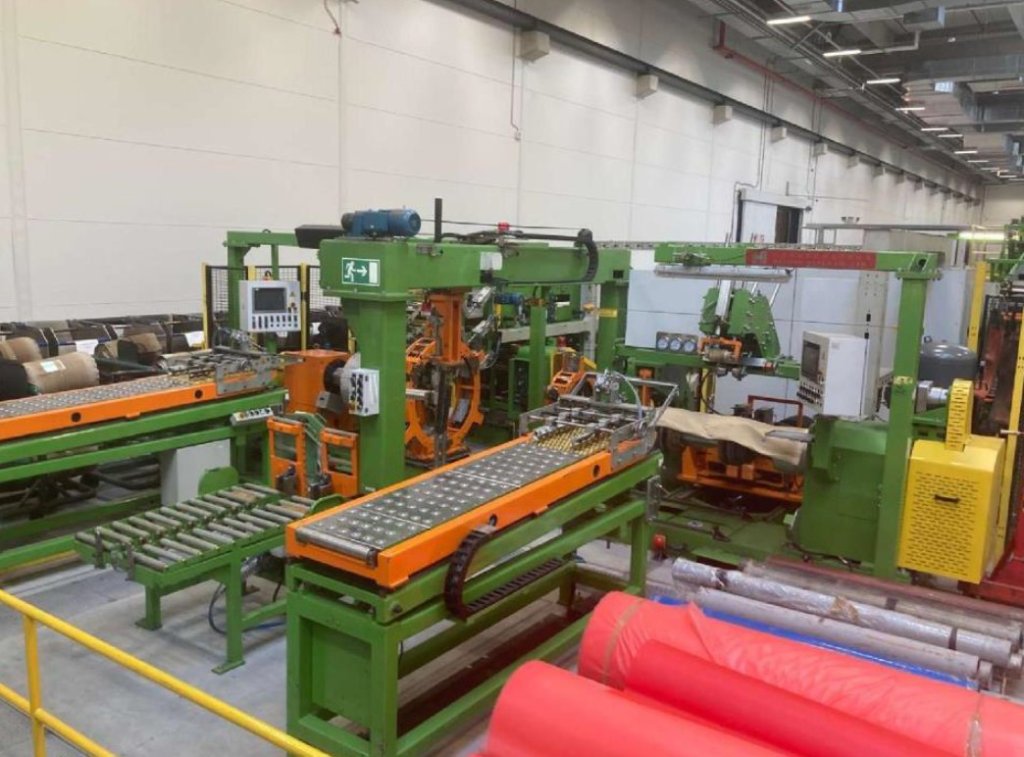

2nd Stage Tire Building Machine IFRT-0815

Hanch

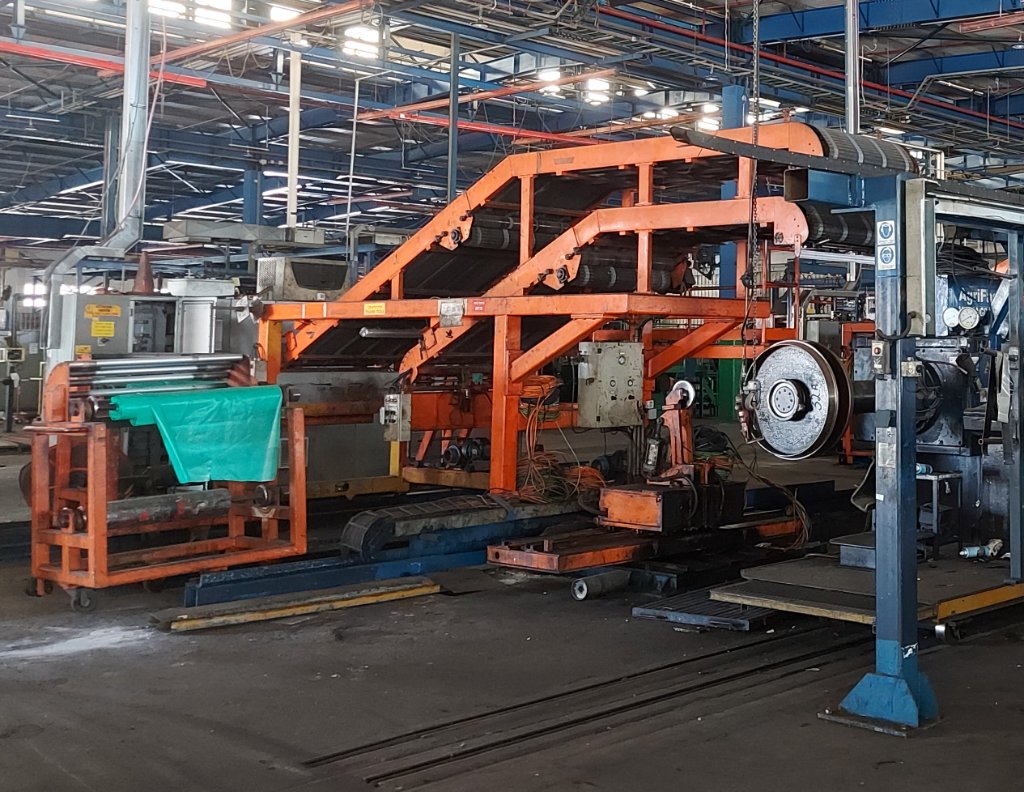

AGRIFAST AGR 2nd Stage TBM

Marangoni

Marangoni AGRIFAST AGR 2nd Stage tire building machine with 2 belt servicers, designed for agricultural tires. Features Allen Bradley ControlLogix PLC control system.

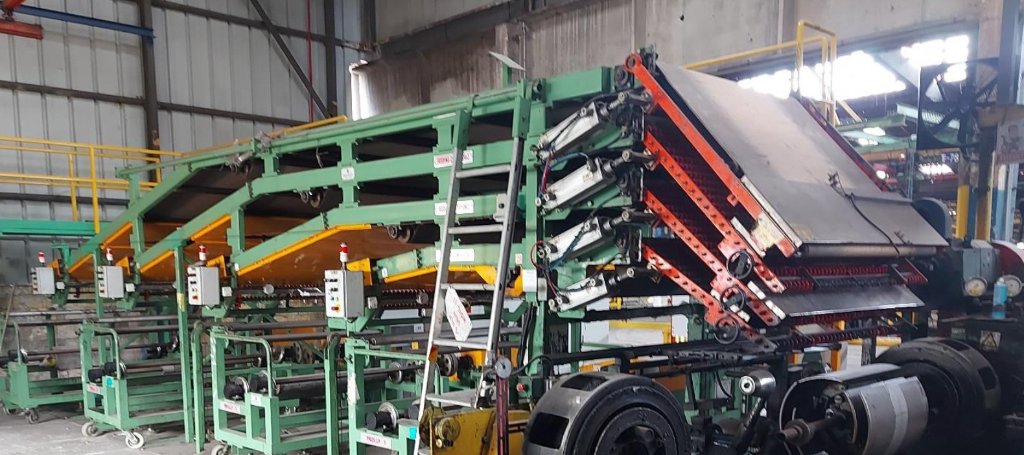

3+1 PLY SERVICER

TEKFAB

TEKFAB ENGINEERS 3 ply + 1 innerliner servicer unit for tire building machines. Rarely used, still installed with Allen Bradley control system.

2nd stage Servicer for TBM

Eds

2nd stage servicer for TBM

Pirelli

2nd stage machine

Eds

Servicer for TBM

Marangoni

Servicer for TBM

Marangoni

Servicer for TBM

Tri-c

Servicer for TBM

Eds

Servicer T53 for TBM

Eds

Tyre Bulding Machine - AGRI NEW

Hanch

Radial Agri-OTR, NEW

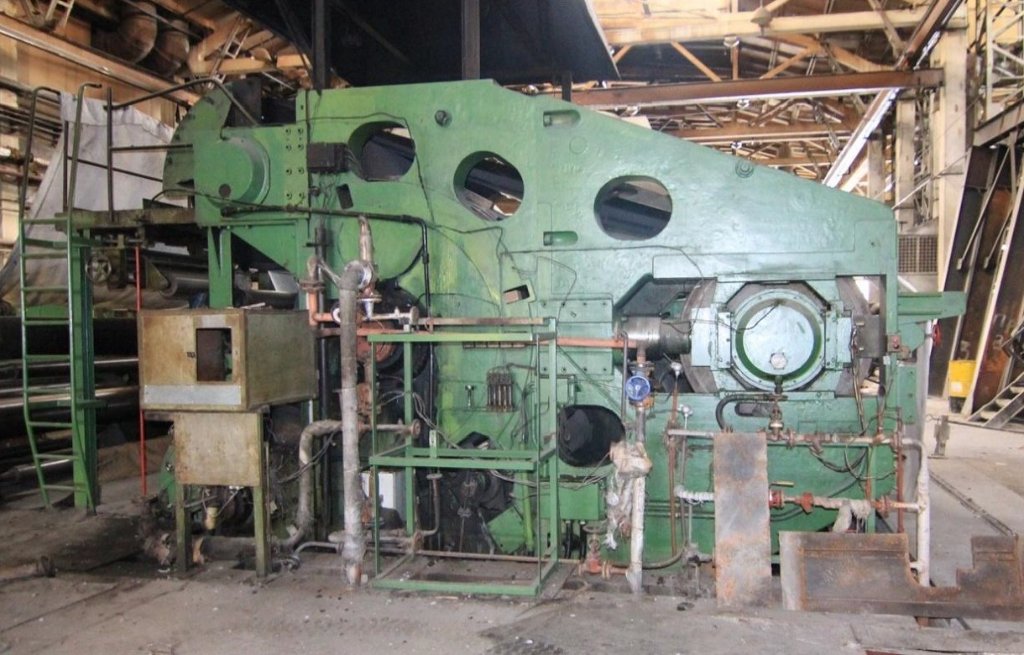

Rotocure AUMA 20S

Berstorff

Type AUMA 20S rotocure with large heating drum Professional dismantled and stored in dry area Steelbelt available

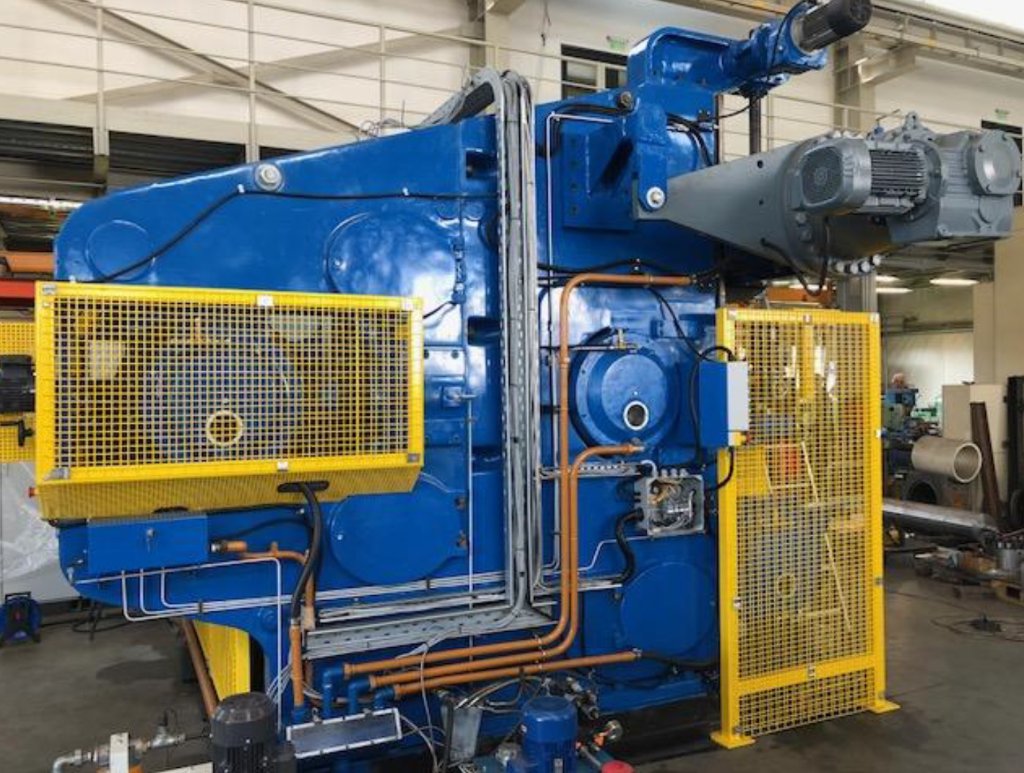

Rotocure AUMA 15

Berstorff

Refurbished and modernized in 2022 Type AUMA 15 with heating drum 1500 x 1850mm Complete electrical and control system modernization with new main bearings, lubrication unit, and additional back heating

Rotocure / AUMA

Berstorff

Rotocure

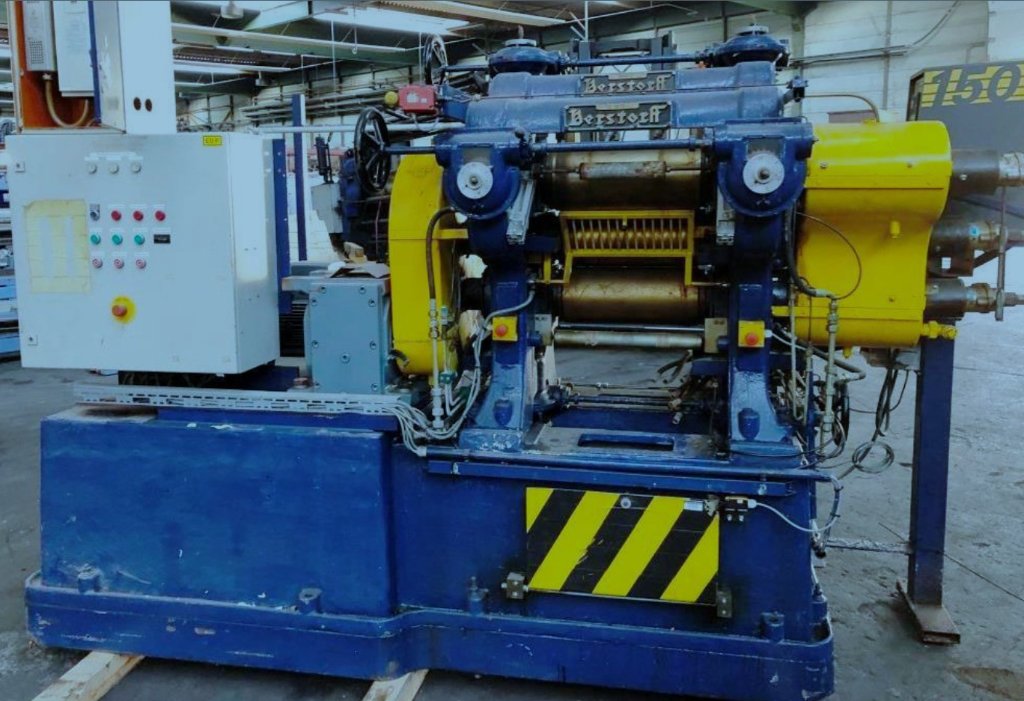

200 X 450mm 4 Rolls lab calender

Berstorff

Lab Calender

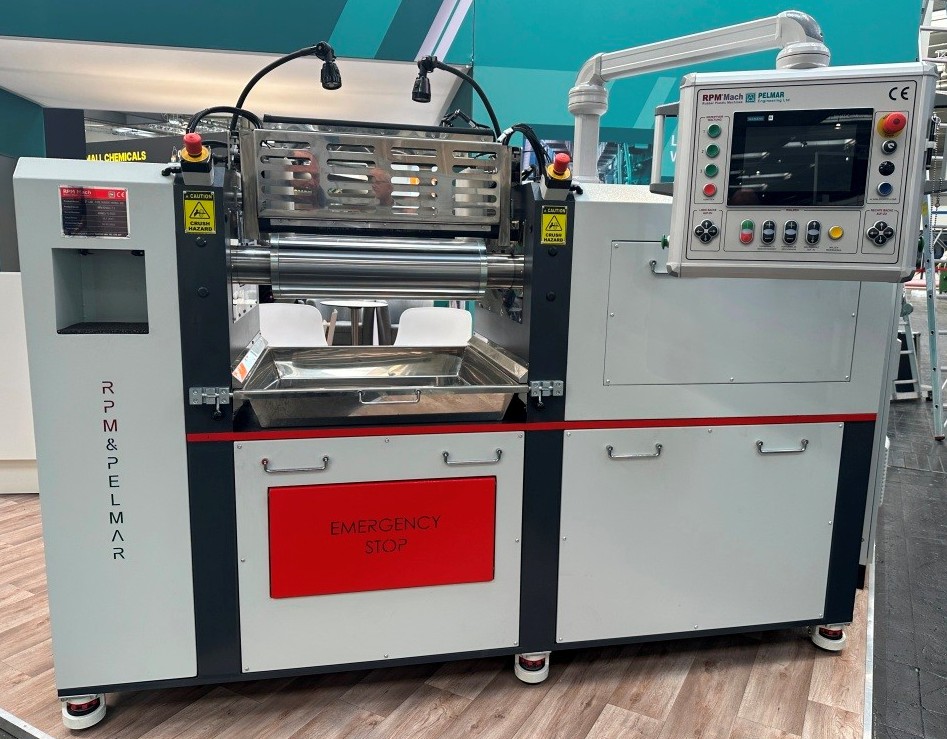

180 x 560mm Lab Mill

Pelmar/RPM

Lab Mill

Productions MDR-2000

Alpha Technologies

Productions MDR

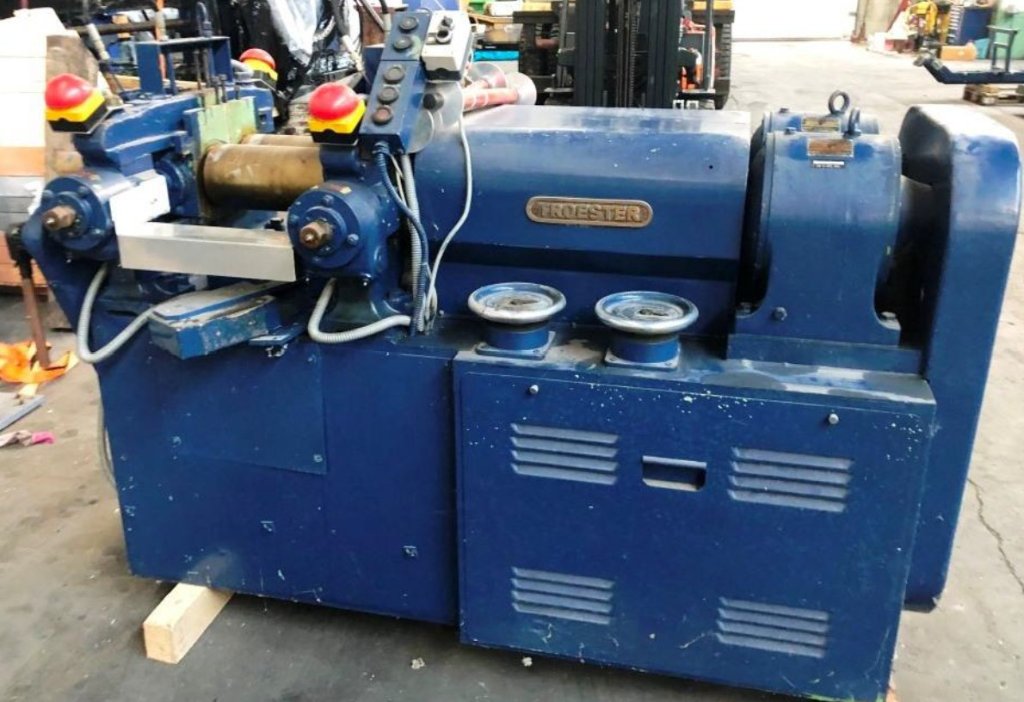

150 X 350mm Lab Mill

Troester

Lab Mill

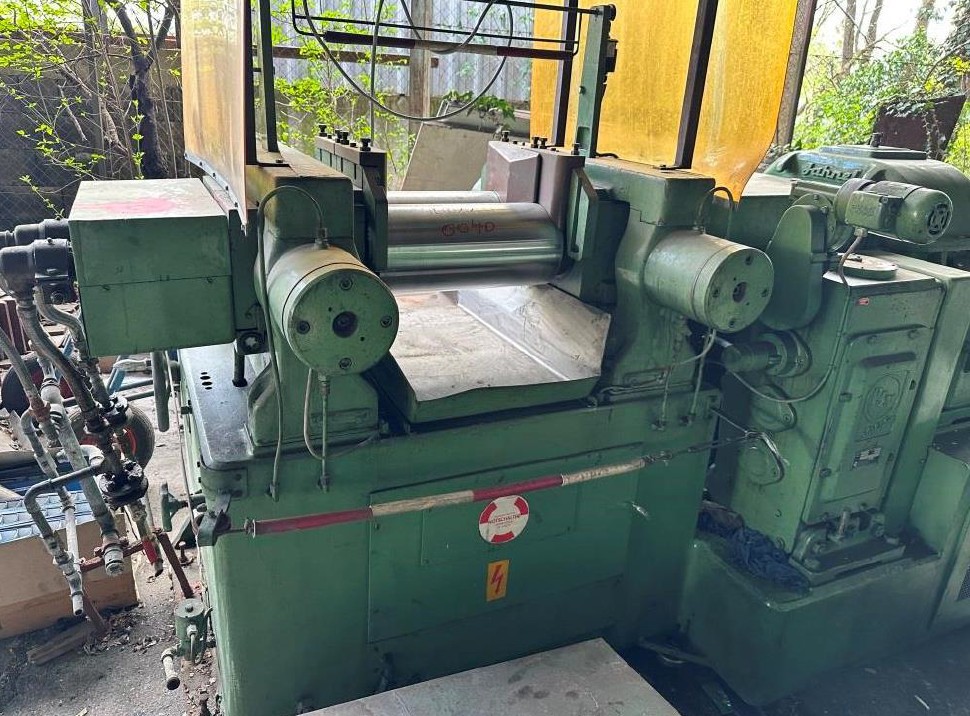

190 x 450mm Lab Mill

Schwabenthan

Lab Mill

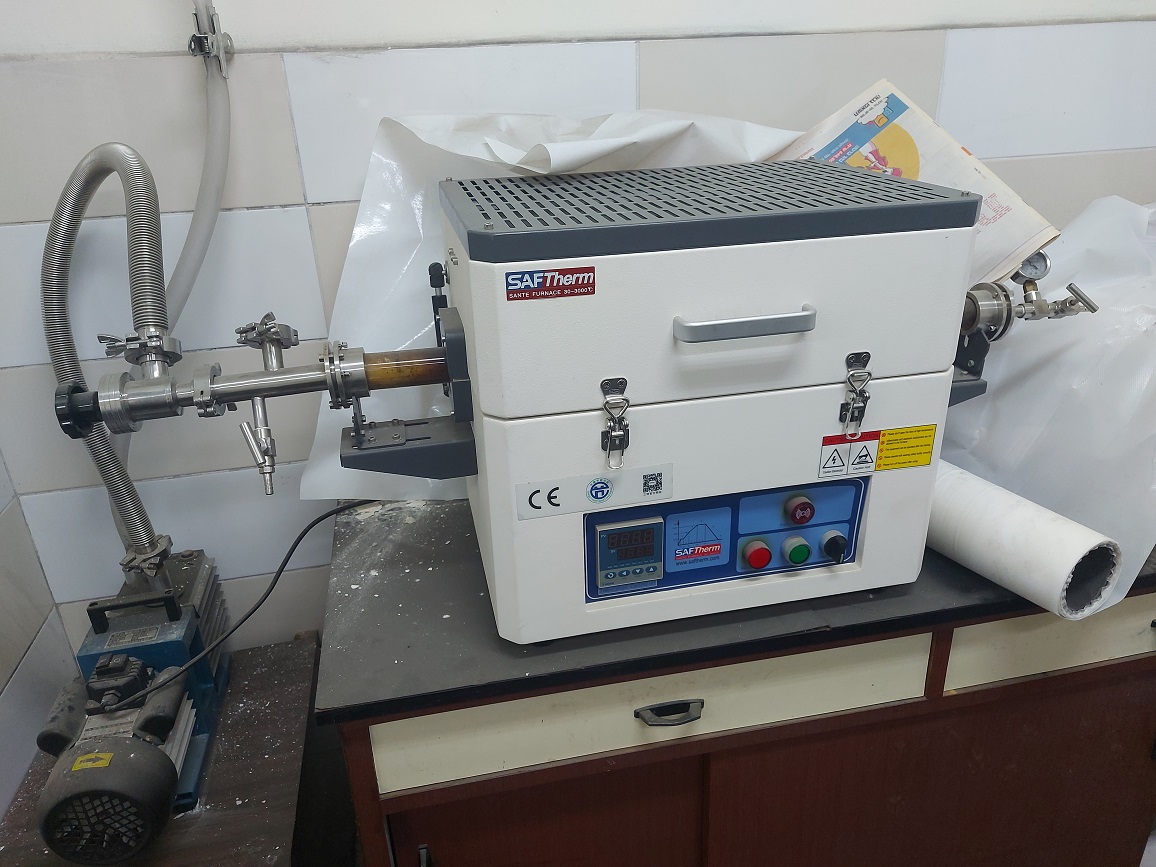

Tube Furnace

SafTherm

Laboratory tube furnace for thermal analysis and material testing with programmable temperature profiles

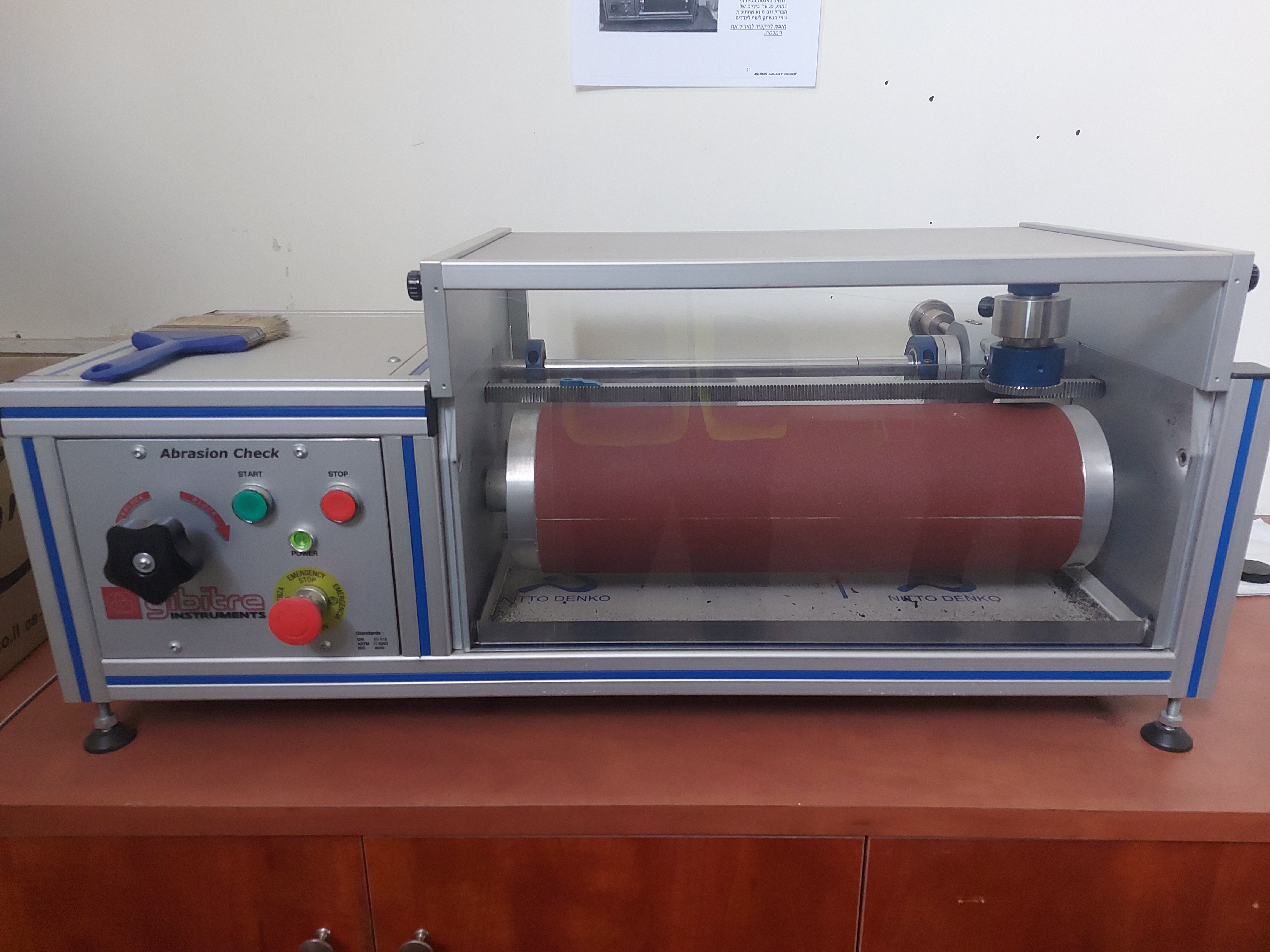

Abrasion tester

Gibitre

DIN abrasion tester for rubber compound evaluation according to international standards

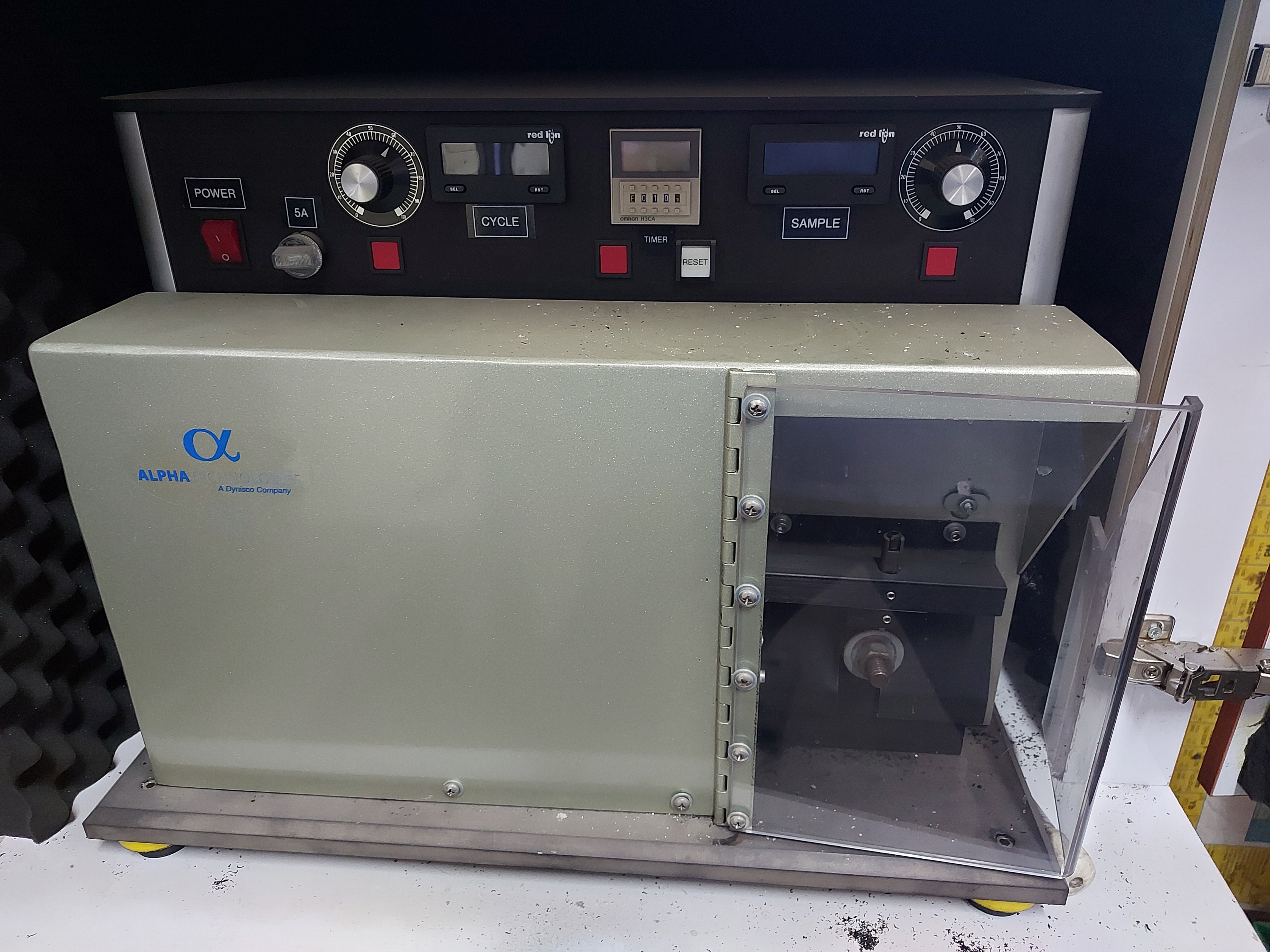

Cut & Chip tester

Alpha Technologies

Advanced rubber testing equipment for evaluating cut and chip resistance of tire compounds

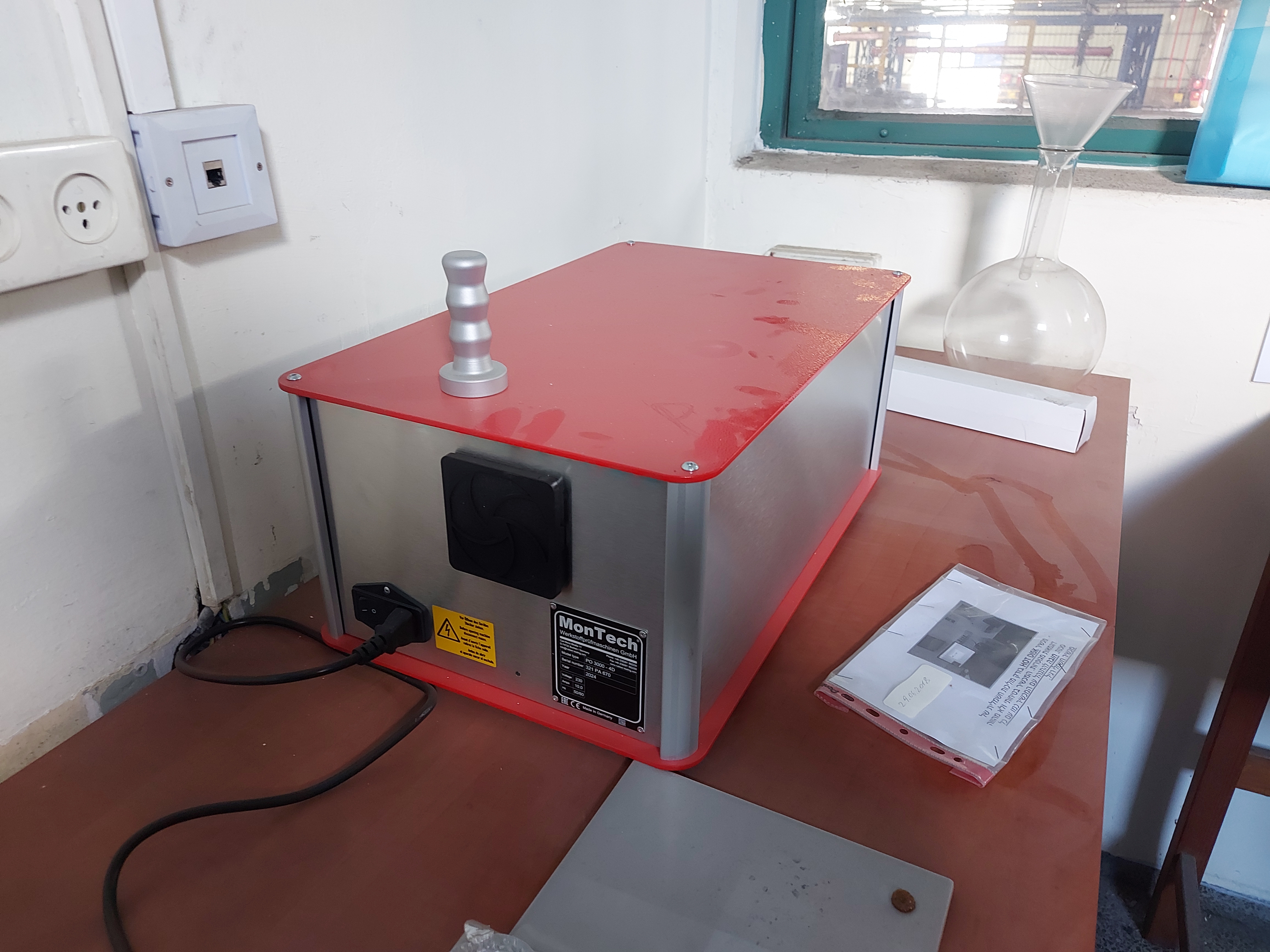

Oven for PRI

Montech

Precision aging oven for Plasticity Retention Index testing with temperature uniformity

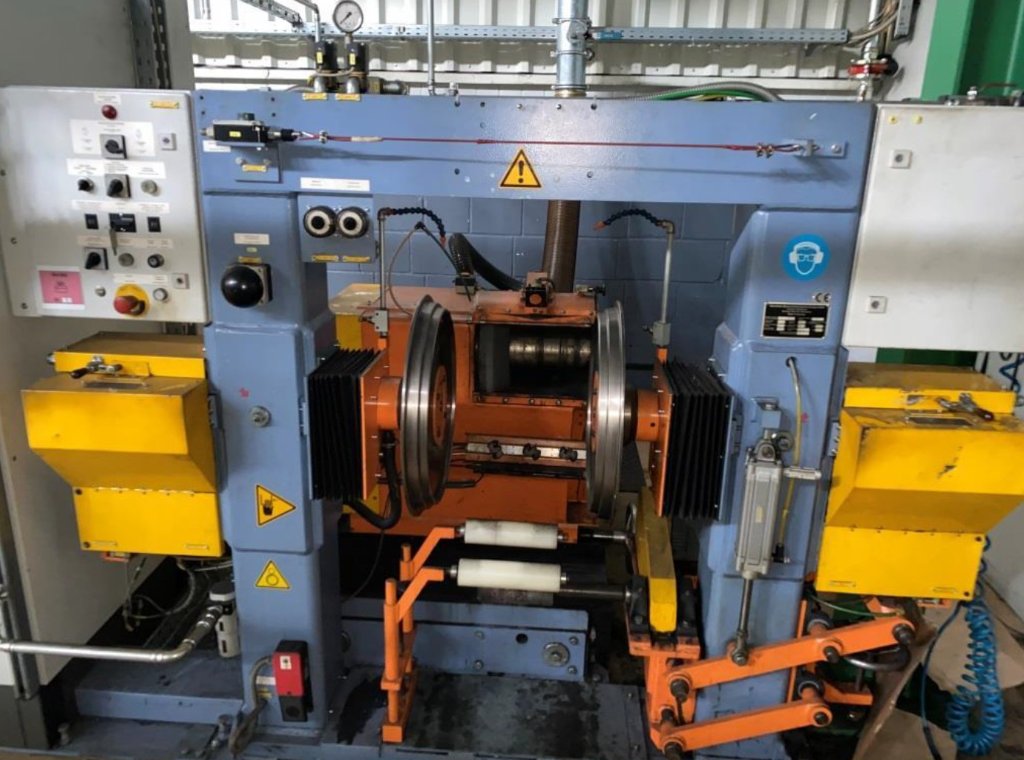

Harmonisation Machine

Micropoise

Harmonisation machine for PCR

Tensometer

Tension Tester

Tira test 2703

Heating Chamber

div Sizes

Tyre Uniformity Rectifier NEW

PELMAR

Uniformity Rectifier NEW

Static Balancing Machine

Cemb

Static Balancing

Tensometer

Tension Tester

Zwick

Abrasions Tester

Fortuna

Abrasions Tester

Ozon Chamber

Argentox

Ozon Chamber

Cut & Chip Tester

Alpha Technologies

Abrasion test device

Gibitre

Lab Oven

various

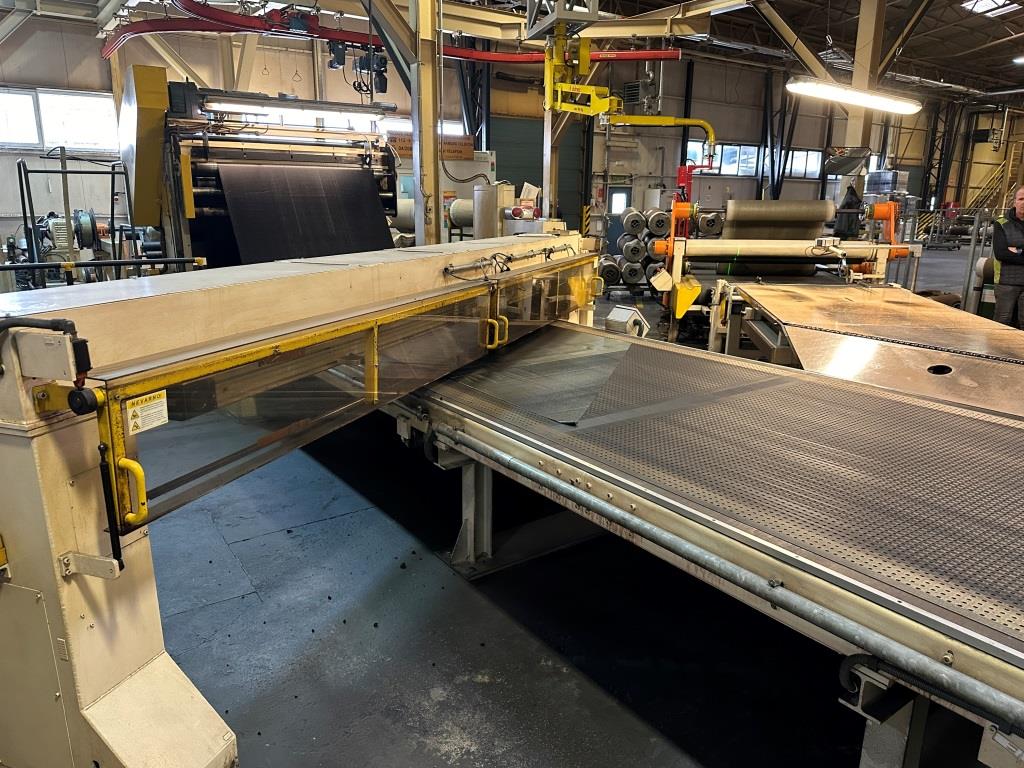

Textile Fabrics Bias & Cross Cutting & Splicing Line (1550 mm)

BERSTORFF

It is a complete processing line designed for textile fabrics, featuring a high-speed cutting unit with adjustable angles (0-50 degrees) and an integrated splicing and winding system. The line consists of several key components including let-off units, a festoon, cutting and splicing tables, vacuum transfer systems, conveyors, and a 4-station wind-up unit.

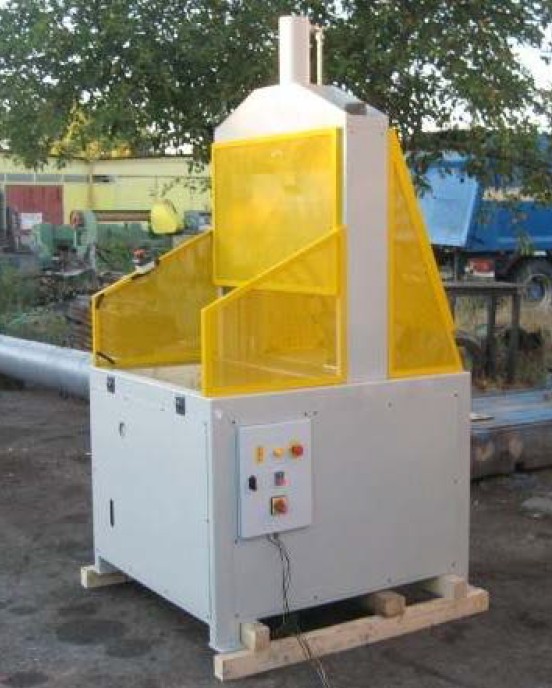

Rubber Bale Cutter - New

Pelmar

Industrial rubber bale cutter with hydraulic cutting system Safety features and two-button operation CE marked with complete technical documentation

ZIG-ZAG Cutter - NEW

Erdemtas

ZIG-ZAG Cutter - NEW

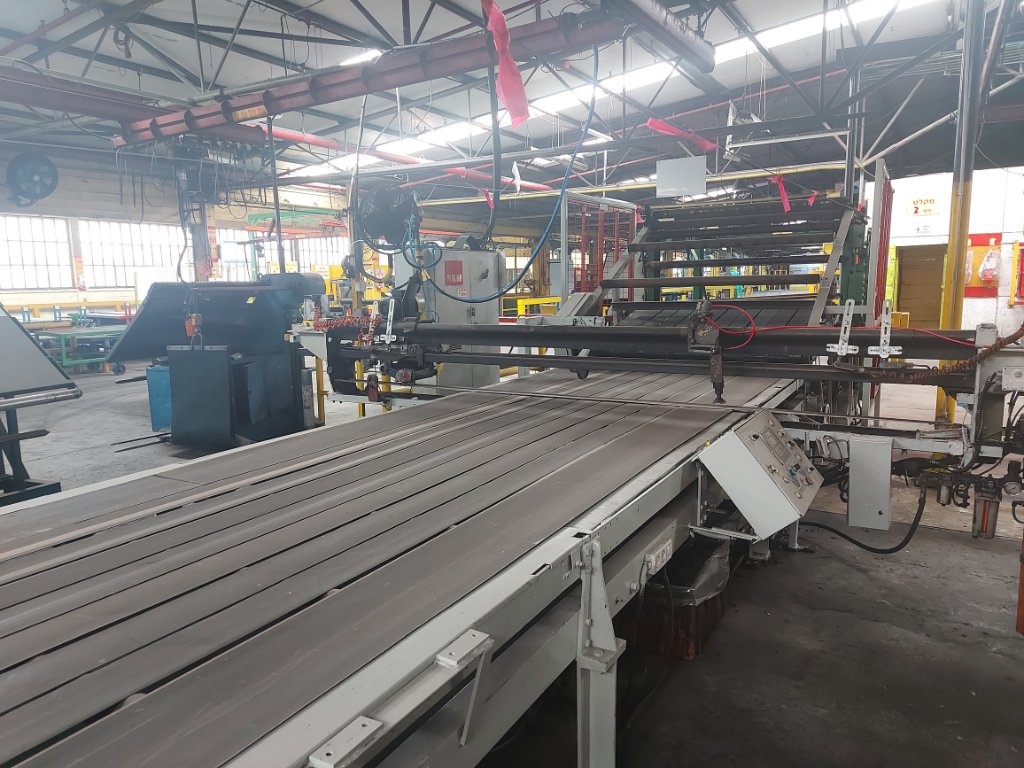

Textile Bias Cutter

NRM

NRM Textile Bias Cutter designed for precision cutting in tire manufacturing. Features variable cutting angle and comprehensive material handling system with let-off station.

Bale Granulator

Blackfriars

Bale Granulator

Air Spring Production equipment

various

Air Springs

Buffer

Cima

Buffer

Retreading - Tyre Curing Press

Marigo

Curing Press

PCT Press NEW

Pelmar

PCT Press NEW

TBR cold retreading line

Bandag

TBR cold retreading line

Builder

Orbitread

Orbitread Builder

Autoclave

Salisbury-Harrelson

Horizontal Autoclave

Autoclave

Vaculug

Horizontal Autoclave

Transfer Curing Press

Bonnazzi

Transfer Curing Press

Autoclave

Cyclotherm

Horizontal Autoclave

Retreading - Tire Builder

SIO

Tire Builder

Retreading - Curing Press

SIO

Curing Press

Air Compressor

Worthington

Air Compressor

Splicing Press

SMM

Designed for textile splicing with 200 x 1800mm heating platen and electric heating at 22kW. Equipped with Seal & Trade hydraulic powerpack (HAST350/PV063-11kW, 350l). CE certified.

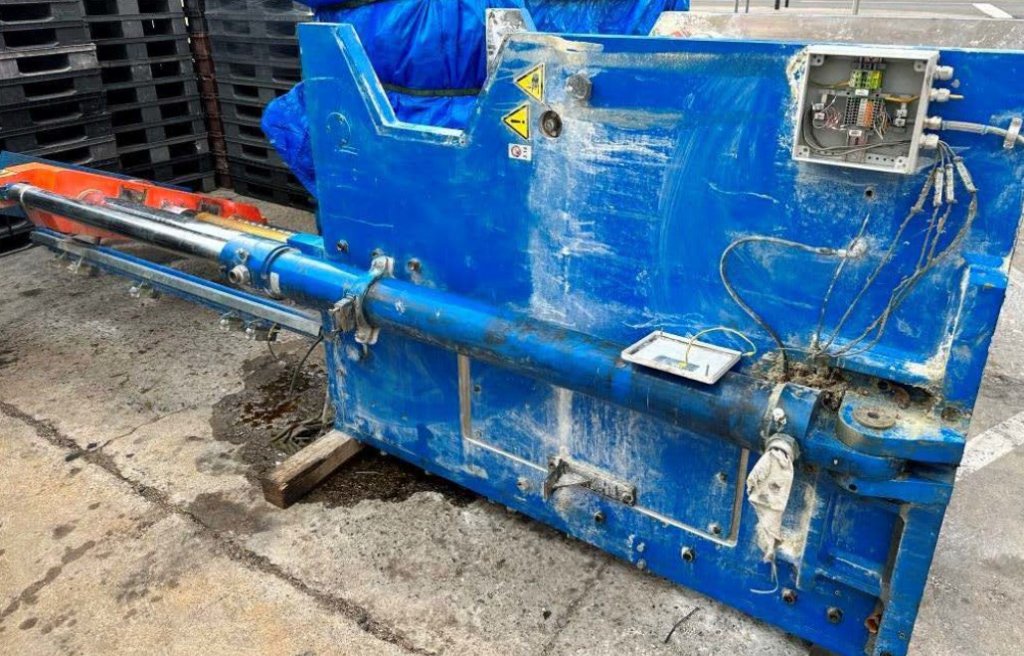

Hydraulic Hopper for GK-190E Internal Mixer

HF

Hydraulic hopper for GK-190E Internal Mixer Machine Nr: 01-569 Used for Master Batch/Final Batch Chute made from VA steel, hydraulically operated Hydraulic power pack not available

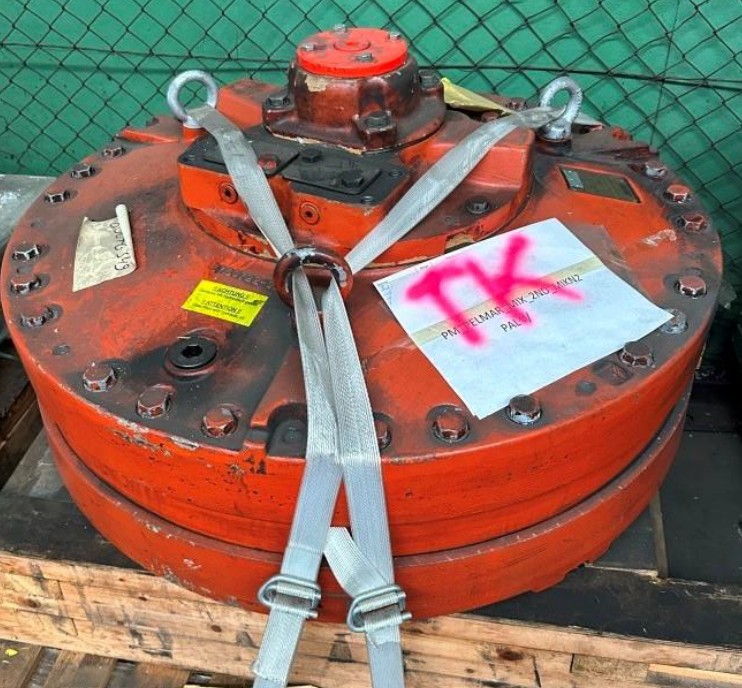

Hydraulic Motors

Hägglunds

Multiple Hägglunds hydraulic motors available: MA 400 (2 units - 1 refurbished, 1 used), MA 283 (3 units - 1 refurbished, 2 used), and CB 280 280 (1 unit - NEW) Max pressure 350bar

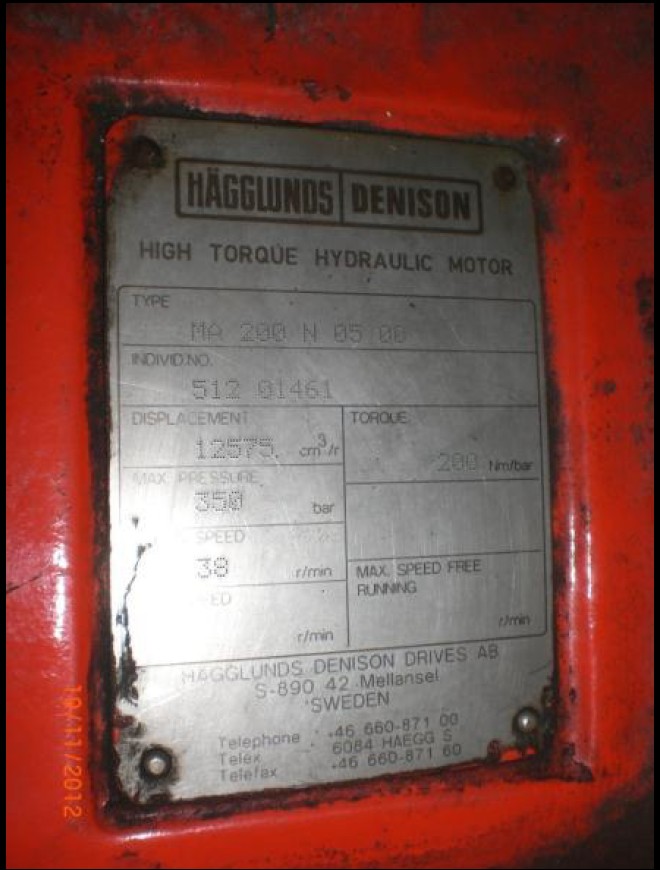

Hydraulic Motor MA 200

Hägglunds

Hägglunds high torque hydraulic motor, type MA 200 N 05 00 Displacement 12575 Cm³/R, torque 200 N*M/bar, max pressure 350 bar, rated speed 38 RPM

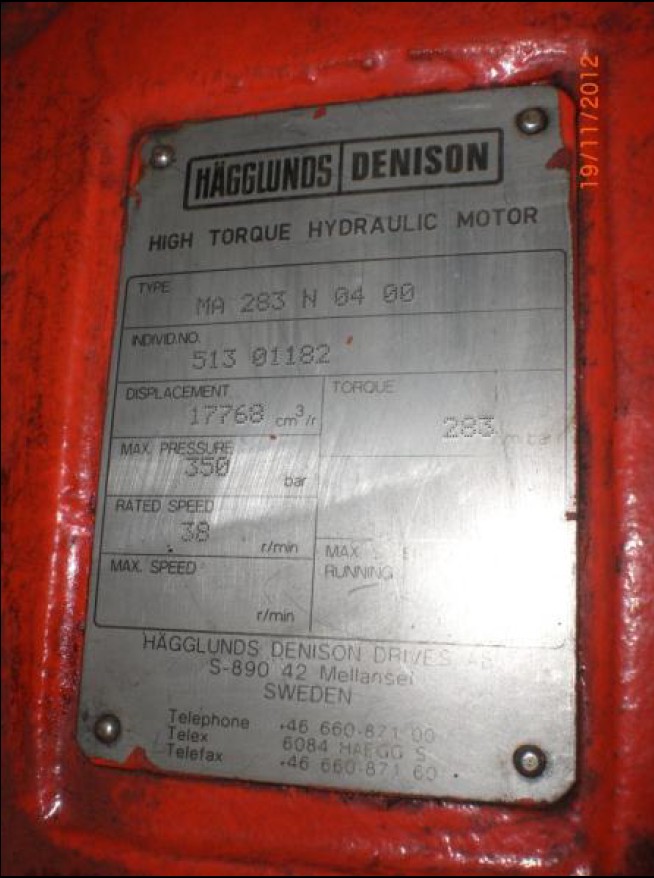

Hydraulic Motor MA 283

Hägglunds

Hägglunds high torque hydraulic motor, type MA 283 N 04 00 Displacement 17768 Cm³/R, torque 283 N*M/bar, max pressure 350 bar, rated speed 38 RPM

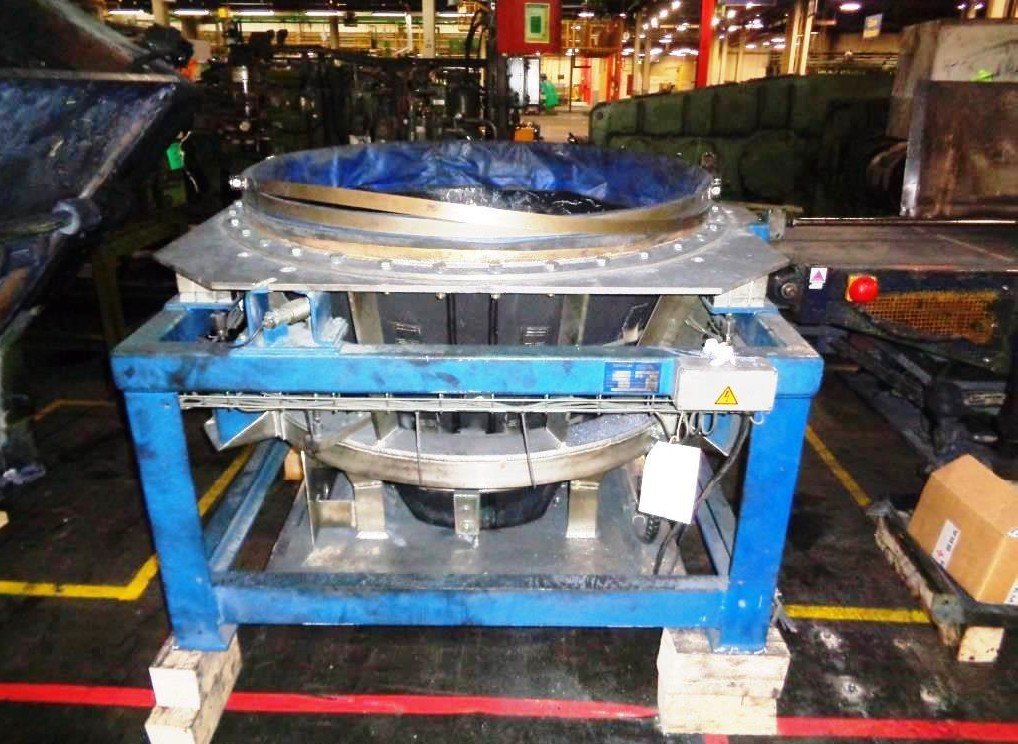

Carbon Black Weighing Scale

Zeppelin

Carbon Black weighing scale, type PBW-400 Usable volume 400l Operating pressure 0.010bar, design pressure 0.020bar Full set of documentation available

Tunnel Batch-Off

VMI

Batch Off

Batch Off - NEW

Pelmar

Batch Off

Roto Strip Cooler - New

Pelmar

Roto Strip Cooler

Tire Mounting

Hgv

Tire Mounting

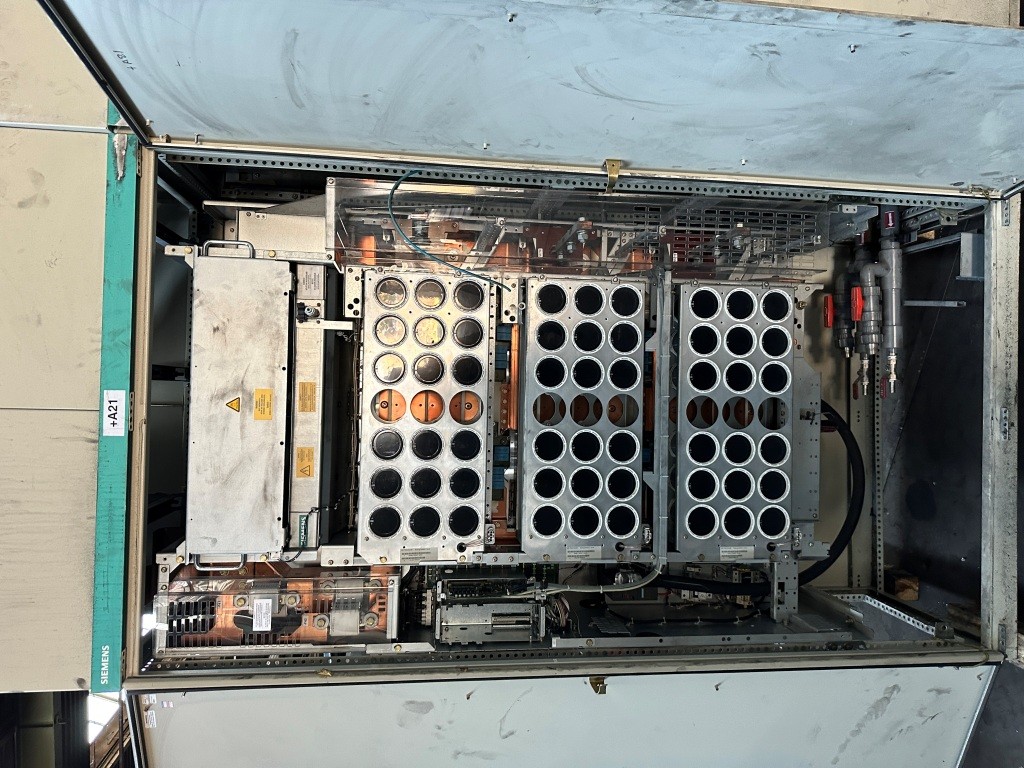

AC 1500kW Motor with Watercooler and Simovert Masterdrive

Siemens

Pre-owned AC 1500kW Motor (Siemens, Germany, 2008) with integrated water cooling system and Simovert Masterdrive. Type 1RN4 500-4FMooZ, rated at 1500kW / 690V / 2×730A, speed 1490 rpm, weight 5400kg. Includes watercooled Simovert Masterdrive (4 panel). Cooling flow: 144 l/min.
